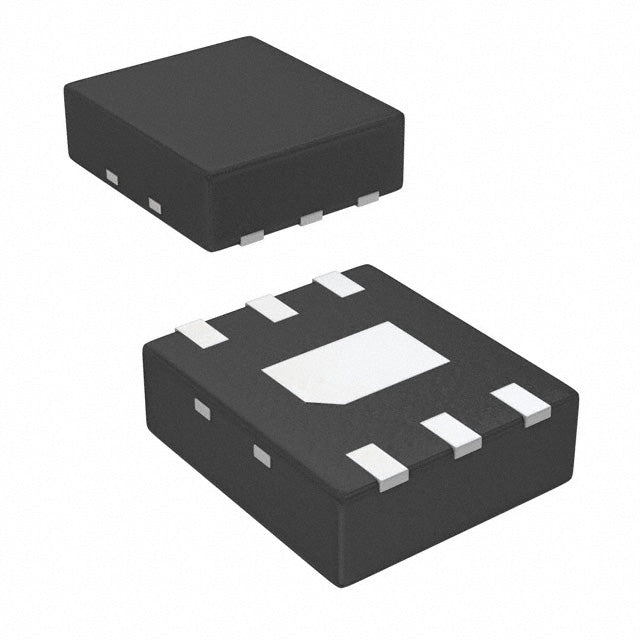

Texas Instruments LP5900SDX-2.8/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.63 | $0.63 |
| 15+ | $0.61 | $9.15 |
| 25+ | $0.59 | $14.75 |
| 50+ | $0.56 | $28.00 |
| 100+ | $0.50 | $50.00 |
| N+ | $0.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.15V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 50 μA |
| Current - Supply (Max) | 230 μA |
| PSRR | 85dB ~ 40dB (100Hz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2.2x2.5) |
| ROHS |  |
The Texas Instruments LP5900SDX-2.8 is a fixed-output, low-dropout linear regulator delivering 150mA with a precise 2.8V output. Its ultra-low 50μA quiescent current and 150mV dropout voltage make it exceptionally efficient for battery-powered applications. The device offers superior power supply rejection (85dB at 100Hz), ensuring clean power for sensitive electronics. Housed in a compact 6-WSON package, it is ideal for space-constrained designs requiring reliable, low-noise performance.
- Extended Battery Life: Ultra-low 50μA quiescent current minimizes standby power draw, ideal for portable devices.
- Clean Power Delivery: High PSRR (85dB at 100Hz) filters out supply noise, protecting sensitive analog and RF circuits.
- High Efficiency at Low Dropout: 150mV dropout at 150mA allows operation close to the battery's discharge threshold, maximizing usable energy.
- Compact Footprint: The 6-WSON (2.2x2.5) package saves board space for miniaturized designs.
Battery-Powered IoT Sensors
The LP5900's low 50μA quiescent current and 150mV dropout at 150mA make it ideal for extending battery life in wireless sensor nodes, where the regulator operates efficiently near the battery's end-of-life voltage.
Precision Analog Front-Ends
With 85dB PSRR at 100Hz, this LDO provides a clean, stable 2.8V rail for sensitive analog circuits like op-amps and ADCs, minimizing power supply noise that could corrupt measurements.
Portable Medical Devices
The small 6-WSON package and low dropout voltage allow for compact, efficient power management in wearable health monitors, ensuring reliable operation from a single Li-ion cell.
RF Transceivers
The high PSRR across 100Hz to 100kHz (85dB to 40dB) suppresses noise from switching regulators or digital circuits, maintaining signal integrity for RF communication modules.
Audio Codec Power
For portable audio devices, the LP5900 provides a quiet 2.8V supply, reducing audible hum and noise in the audio path thanks to its excellent ripple rejection.
Industrial Control Systems
The fixed 2.8V output and 150mA capability suit low-power industrial sensors and controllers, offering a stable reference voltage in noisy factory environments.
- Q: What is the output voltage of the LP5900SDX-2.8?
- A: The fixed output voltage is 2.8V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is from 2.8V to 5.5V (not explicitly listed, typical for this device).
- Q: What is the dropout voltage?
- A: The dropout voltage is 150mV at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 50μA.
- Q: What package is available?
- A: It comes in a 6-WSON (2.2x2.5) package.
