NXP USA Inc. LPC5504JHI48E
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 8.24 | Dhs. 8.24 |
| 15+ | Dhs. 7.99 | Dhs. 119.85 |
| 25+ | Dhs. 7.82 | Dhs. 195.50 |
| 50+ | Dhs. 7.39 | Dhs. 369.50 |
| 100+ | Dhs. 6.52 | Dhs. 652.00 |
| N+ | Dhs. 1.30 | Price Inquiry |
Request Quote / Inquiry
Product Overview
The LPC5504JHI48E is a high-performance 32-bit microcontroller from NXP's LPC550x series, powered by an ARM® Cortex®-M33F core running at 96MHz. This advanced MCU combines robust processing capabilities with comprehensive connectivity options, making it ideal for industrial automation, automotive systems, medical devices, and IoT applications requiring reliable real-time performance.
Key Features & Benefits
- High-Performance Processing: ARM Cortex-M33F core with TrustZone security technology delivers efficient 32-bit computing at 96MHz
- Generous Memory: 128KB Flash program memory and 80KB RAM provide ample space for complex applications
- Versatile Connectivity: Integrated CANBus, Flexcomm, I2C, SPI, and UART/USART interfaces enable seamless communication across diverse systems
- Rich Peripheral Set: Includes DMA, I2S, PWM, True Random Number Generator (TRNG), Watchdog Timer, and brown-out detection for comprehensive system control
- Flexible I/O: 30 general-purpose I/O pins with 7-channel 16-bit SAR ADC for precise analog measurements
- Wide Operating Range: Functions reliably from -40°C to 105°C with supply voltage range of 1.8V to 3.6V

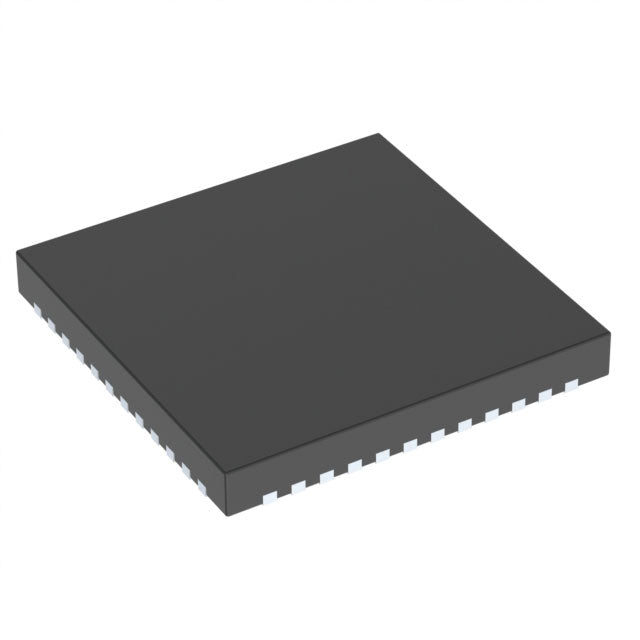

- Compact Package: 48-pin HVQFN (7x7mm) surface mount package with wettable flanks for enhanced inspection and reliability
- RoHS Compliant: Meets environmental standards for global market deployment
Applications
The LPC5504JHI48E excels in demanding embedded applications including industrial control systems, building automation, motor control, sensor networks, automotive body electronics, portable medical instruments, and secure IoT edge devices. Its combination of processing power, security features, and connectivity makes it a versatile choice for next-generation embedded designs.
Technical Advantages
Built on NXP's proven LPC architecture, this microcontroller offers developers a powerful platform with low power consumption, advanced security features through ARM TrustZone, and extensive development tool support. The dual oscillator configuration (external and internal) provides flexibility in clock source selection, while the comprehensive peripheral set reduces the need for external components.
Related Resources
Explore our complete range of Microcontrollers for your embedded system needs. Visit HQICKEY to discover our full catalog of high-reliability semiconductor solutions. Stay updated with the latest industry insights and technical articles on our News Blog.
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | LPC550x |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M33F |
| Core Size | 32-Bit |
| Speed | 96MHz |
| Connectivity | CANBus, Flexcomm, I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, TRNG, WDT |
| Number of I/O | 30 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 80K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 7x16b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Memory Type | Surface Mount, Wettable Flank |
| Grade | - |
| Qualification | - |
| Package / Case | 48-HVQFN (7x7) |
| Supplier Device Package | 48-VFQFN Exposed Pad |
| ROHS |  |
