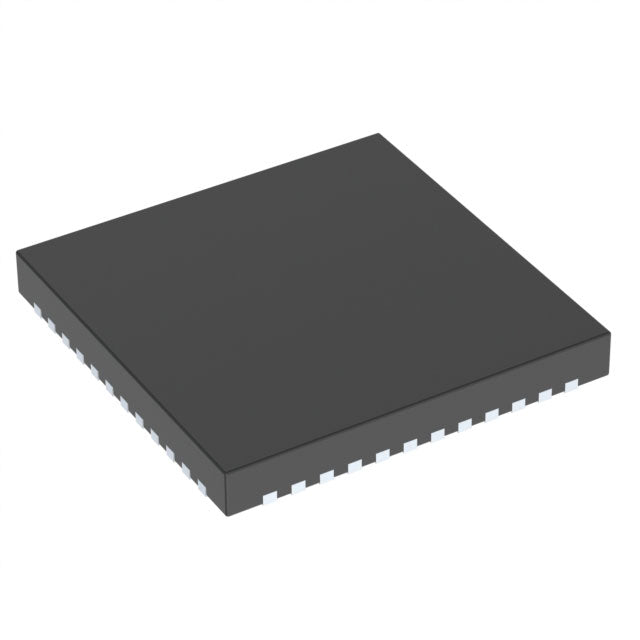

NXP USA Inc. LPC5506JHI48E
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 9.14 | Dhs. 9.14 |
| 15+ | Dhs. 8.86 | Dhs. 132.90 |
| 25+ | Dhs. 8.67 | Dhs. 216.75 |
| 50+ | Dhs. 8.19 | Dhs. 409.50 |
| 100+ | Dhs. 7.22 | Dhs. 722.00 |
| N+ | Dhs. 1.44 | Price Inquiry |
Request Quote / Inquiry
NXP LPC5506JHI48E - High-Performance ARM Cortex-M33F Microcontroller
The LPC5506JHI48E from NXP USA Inc. is a powerful 32-bit microcontroller built on the ARM® Cortex®-M33F core, delivering exceptional performance at 96MHz for demanding embedded applications in industrial, automotive, and IoT sectors.
Key Features & Benefits
- High-Performance Processing: ARM Cortex-M33F core running at 96MHz ensures fast execution for real-time applications
- Generous Memory: 256KB Flash program memory and 96KB RAM provide ample space for complex firmware
- Rich Connectivity: Integrated CANBus, Flexcomm, I2C, SPI, and UART/USART interfaces enable seamless communication
- Advanced Peripherals: Built-in DMA, I2S, PWM, TRNG, and watchdog timer enhance system capabilities
- Precision Analog: 7-channel 16-bit SAR ADC for accurate sensor readings
- Wide Operating Range: Functions reliably from -40°C to 105°C in harsh environments
- Flexible Power Supply: Operates on 1.8V to 3.6V for versatile system integration
- Compact Package: 48-HVQFN (7x7mm) with wettable flank for reliable PCB mounting
Ideal Applications
Perfect for industrial automation, motor control, building automation, smart sensors, medical devices, and automotive body electronics where reliability and performance are critical.
Why Choose HQICKEY?
At HQICKEY, we specialize in providing high-quality semiconductor components for aerospace, automotive, industrial, medical, and telecommunications applications. Browse our extensive Microcontrollers collection for more ARM Cortex-M series and other MCU solutions. Stay updated with the latest industry insights and technical guides on our News & Technical Blog.
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | LPC550x |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M33F |
| Core Size | 32-Bit |
| Speed | 96MHz |
| Connectivity | CANBus, Flexcomm, I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, TRNG, WDT |
| Number of I/O | 30 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 96K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 7x16b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Memory Type | Surface Mount, Wettable Flank |
| Grade | - |
| Qualification | - |
| Package / Case | 48-HVQFN (7x7) |
| Supplier Device Package | 48-VFQFN Exposed Pad |
LPC5506JHI48E.pdf
