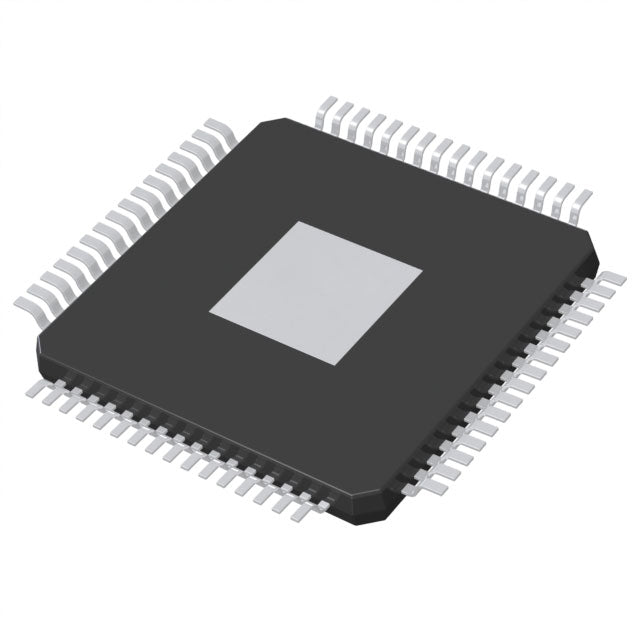

NXP USA Inc. LPC5516JBD64E
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.18 | $4.18 |
| 15+ | $4.05 | $60.75 |
| 25+ | $3.96 | $99.00 |
| 50+ | $3.74 | $187.00 |
| 100+ | $3.30 | $330.00 |
| N+ | $0.66 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | LPC551x |
| Packaging | Tray | Tray |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit Single-Core |
| Speed | 150MHz |
| Connectivity | CAN FD, Flexcomm, I2C, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, RNG, WDT |
| Number of I/O | 36 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 96K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 10x16b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-HTQFP (10x10) |
| Package / Case | 64-TQFP Exposed Pad |
| ROHS |  |
The NXP LPC5516JBD64E is a secure, high-performance MCU based on the ARM Cortex-M33 core at 150MHz. With 256KB flash and 96KB RAM, it offers rich connectivity including I2S, PWM, and RNG. Operating from 1.8V to 3.6V in a 64-TQFP package, it is designed for industrial and IoT applications requiring security and efficiency.
- Advanced Security: Arm TrustZone and RNG enable secure boot and data protection.
- High Performance: 150MHz Cortex-M33 with DSP instructions accelerates signal processing.
- Large Memory: 96KB RAM supports complex real-time applications.
- Wide Voltage Range: 1.8V-3.6V allows flexible power supply design.
Industrial IoT Gateways
The Cortex-M33 with TrustZone and RNG provides secure connectivity for data aggregation and edge processing.
Motor Control with Field-Oriented Control
150MHz processing and PWM peripherals support high-frequency control loops for servo and BLDC motors.
Smart Home Hubs
Multiple communication interfaces and low power modes make it ideal for managing Zigbee, Thread, and BLE protocols.
Portable Medical Devices
The 1.8V operation and low-power features enable battery-powered monitoring devices with DSP capabilities.
Audio Processing and I2S Interfaces
Integrated I2S and DMA support high-fidelity audio streaming for voice assistants and soundbars.
Automotive Body Electronics
The 105°C rating and robust peripherals suit window lift, mirror control, and lighting modules.
- Q: What core does the LPC5516JBD64E use?
- A: It is based on the ARM Cortex-M33 core running at up to 150MHz.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 105°C, suitable for industrial environments.
- Q: Does it have a random number generator?
- A: Yes, it includes an RNG peripheral for security applications.
- Q: What is the supply voltage range?
- A: The device supports 1.8V to 3.6V, offering flexible power design options.
- Q: How much RAM is available?
- A: It has 96KB of SRAM, enabling complex applications.
