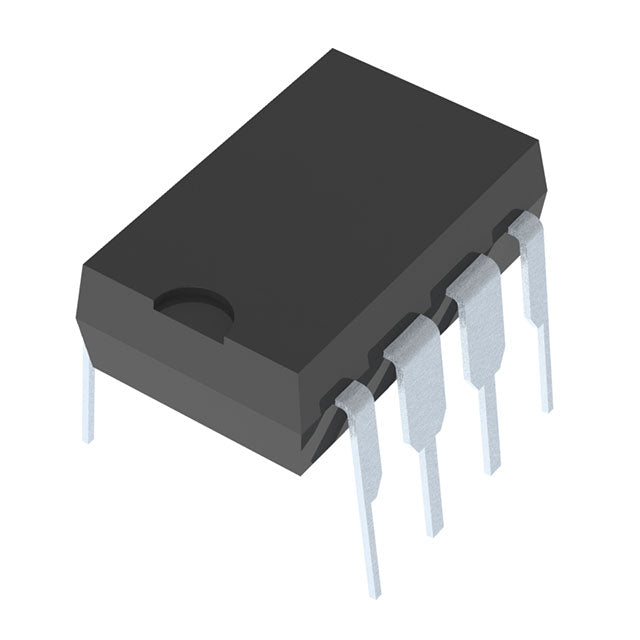

Analog Devices Inc. LT1372CN8#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.73 | $10.73 |
| 15+ | $10.39 | $155.85 |
| 25+ | $10.16 | $254.00 |
| 50+ | $9.60 | $480.00 |
| 100+ | $8.47 | $847.00 |
| N+ | $1.69 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive or Negative |
| Topology | Buck, Boost, Cuk, Flyback, Forward Converter, SEPIC |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 1.245V |
| Voltage - Output (Max) | 35V (Switch) |
| Current - Output | 1.5A (Switch) |
| Frequency - Switching | 500kHz |
| Synchronous Rectifier | No |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| ROHS |  |
The LT1372CN8 is a highly versatile DC-DC converter IC from Analog Devices, supporting Buck, Boost, Cuk, Flyback, Forward, and SEPIC topologies. It operates from an input voltage of 2.7V to 30V and features a 1.5A switch with a 35V rating. The fixed 500kHz switching frequency allows for small external components. This flexibility makes it ideal for a wide range of applications, from automotive power supplies to isolated flyback converters and battery-powered systems.
- Multi-Topology Support: One IC replaces multiple dedicated converters, reducing inventory and design time.
- Wide Input Range (2.7V-30V): Handles automotive, industrial, and battery voltage variations.
- 1.5A Switch with 35V Rating: Supports moderate power levels in flyback and boost applications.
- Through-Hole 8-DIP Package: Easy to prototype and solder, ideal for breadboard and hobbyist designs.
Multi-Topology Power Supplies
The LT1372CN8's flexibility to operate as Buck, Boost, SEPIC, or Flyback makes it a single solution for prototyping and low-volume production where multiple output voltages are needed from varying input sources.
Flyback Converters for Isolated Supplies
Its 1.5A switch and 35V rating enable compact flyback designs for isolated 5V/12V supplies in industrial control and telecom applications, eliminating the need for a separate controller.
Automotive 12V Systems
With a 30V input range, it can step down 12V automotive rails to 5V for sensors or step up to 24V for actuator drivers, handling load transients effectively.
Battery-Powered Equipment
For 3-6 cell NiMH or Li-ion packs (3.6V-25V), this converter can boost or buck to maintain a regulated output as the battery voltage changes.
Negative Output (Cuk) Converters
The Cuk topology capability allows generation of a negative rail (e.g., -5V) from a positive input, useful for op-amp supplies in analog signal processing.
- Q: What types of converters can the LT1372CN8 be configured as?
- A: It can be configured as Buck, Boost, Cuk, Flyback, Forward Converter, or SEPIC.
- Q: What is the input voltage range?
- A: The input voltage range is from 2.7V to 30V.
- Q: What is the maximum switch voltage?
- A: The maximum switch voltage is 35V.
- Q: What is the maximum switch current?
- A: The maximum switch current is 1.5A.
- Q: What is the switching frequency?
- A: It operates at a fixed 500kHz switching frequency.
- Q: What package is available?
- A: It comes in an 8-DIP (0.300", 7.62mm) package.
