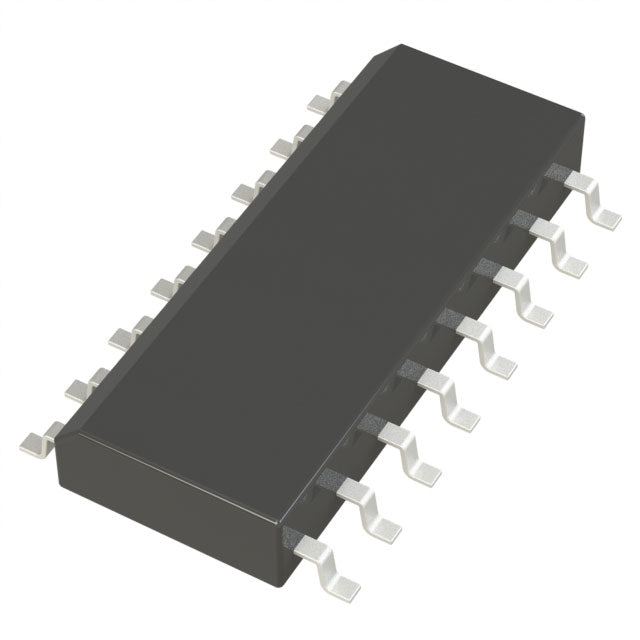

Analog Devices Inc. LT1376HVIS#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.40 | $13.40 |
| 15+ | $12.98 | $194.70 |
| 25+ | $12.70 | $317.50 |
| 50+ | $11.99 | $599.50 |
| 100+ | $10.58 | $1,058.00 |
| N+ | $2.12 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck, SEPIC |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 5V |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 2.42V |
| Voltage - Output (Max) | 25.8V |
| Current - Output | 1.5A (Switch) |
| Frequency - Switching | 500kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO |
| ROHS |  |
The LT1376HVIS is a high-voltage, current-mode PWM Buck DC-DC converter from Analog Devices. It accepts an input from 5V to 30V and provides an adjustable output from 2.42V to 25.8V. The internal 1.5A switch and fixed 500kHz switching frequency enable a compact, efficient power solution. Its high input voltage capability makes it ideal for automotive and industrial applications. It can also be configured as a SEPIC converter for applications where the output may be above or below the input.
- High Input Voltage (30V): Directly handles automotive and industrial voltage transients without requiring external protection circuitry.
- Current-Mode Control: Provides excellent line and load regulation, as well as fast transient response, ensuring stable output under dynamic loads.
- 500kHz Fixed Frequency: Allows for small, low-cost inductors and capacitors, reducing the overall solution size and cost.
- Versatile Buck or SEPIC Topology: Offers design flexibility to address both step-down and step-up/step-down applications with a single IC.
Automotive Power Supplies
In automotive systems, the LT1376HVIS's 30V input rating handles load-dump transients, providing a regulated 5V or 3.3V rail for engine control units, sensors, and infotainment systems from the 12V battery bus.
Industrial Control Systems
For industrial PLCs and motor controllers operating from 24V rails, this converter steps down to logic voltages with high efficiency. Its 500kHz frequency allows for small external components, saving PCB space.
SEPIC for Wide-Range Inputs
When configured as a SEPIC, the LT1376HVIS can regulate an output voltage that is above or below the input. This is useful in applications where the input voltage is not well-defined, such as in automotive cold-crank or battery backup systems.
Distributed Power Architectures
In systems with a 12V or 24V intermediate bus, the LT1376HVIS provides a local, point-of-load supply for FPGAs, ASICs, or microcontrollers, reducing noise and improving regulation.
Networking and Telecom Equipment
For networking switches and routers, this converter can generate a clean 3.3V or 2.5V rail from a 12V backplane, powering high-speed logic and interface circuits with minimal ripple.
Battery Chargers
The LT1376HVIS can be used as a constant-current/constant-voltage battery charger for lead-acid or Li-Ion batteries, leveraging its current-mode control and adjustable output voltage.
- Q: What type of converter is the LT1376HVIS?
- A: It is a high-voltage, current-mode PWM Buck DC-DC converter that can also be configured as a SEPIC converter.
- Q: What is the input voltage range?
- A: The input voltage range is from 5V to 30V.
- Q: What is the output voltage range?
- A: The output voltage is adjustable from 2.42V to 25.8V.
- Q: What is the maximum switch current?
- A: The internal switch is rated for a maximum current of 1.5A.
- Q: What is the switching frequency?
- A: The switching frequency is fixed at 500kHz.
- Q: What package is available?
- A: It is offered in a 16-pin SOIC package.
