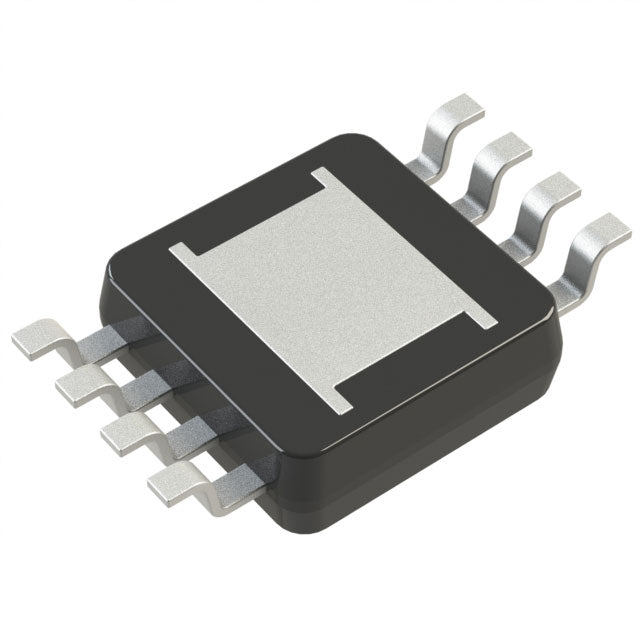

Analog Devices Inc. LT1767EMS8E-2.5#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.15 | $19.15 |
| 15+ | $4.41 | $66.15 |
| 25+ | $4.31 | $107.75 |
| 50+ | $4.07 | $203.50 |
| 100+ | $3.59 | $359.00 |
| N+ | $0.72 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck, SEPIC |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 25V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Current - Output | 1.5A |
| Frequency - Switching | 1.25MHz |
| Synchronous Rectifier | No |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-MSOP-EP |
| ROHS |  |
The Analog Devices LT1767EMS8E-2.5 is a high-frequency buck DC-DC converter that delivers a fixed 2.5V output from a 3V to 25V input. Capable of supplying 1.5A, it operates at a 1.25MHz switching frequency, allowing for small, low-profile inductors and capacitors. The 8-pin MSOP package with exposed pad ensures excellent thermal dissipation. This converter is ideal for automotive, industrial, and distributed power systems requiring a compact, efficient step-down solution.
- High Switching Frequency (1.25MHz): Enables tiny external components, reducing board space.
- Wide Input Range (3V-25V): Handles automotive transients and industrial supply variations.
- 1.5A Output Current: Suitable for powering low-voltage digital cores.
- Exposed Pad Package: Improves thermal performance for reliable operation at high ambient temperatures.
Distributed Power Systems
Step down a 5V or 12V bus to a stable 2.5V core supply for FPGAs and DSPs in networking and computing equipment, with high efficiency at 1.25MHz.
Automotive Infotainment
Convert the 12V car battery (ranging from 9V to 16V) to 2.5V for low-voltage logic in infotainment systems, withstanding load-dump transients up to 25V.
Industrial Control
Provide a regulated 2.5V rail for industrial microcontrollers and sensors from a 24V supply, reducing heat dissipation with its high-frequency operation.
SEPIC Topology for Battery Backup
In SEPIC mode, it can maintain a 2.5V output when the input voltage fluctuates above or below the output, ideal for battery-backed memory systems.
Portable Instruments
Generate a low-voltage core supply from a 3-4.2V Li-Ion battery, maximizing battery life with its low quiescent current and high efficiency.
- Q: What type of converter is the LT1767EMS8E-2.5?
- A: It is a Buck (step-down) DC-DC converter, also capable of SEPIC topology.
- Q: What is the input voltage range?
- A: The input voltage range is from 3V to 25V.
- Q: What is the output voltage?
- A: The output voltage is fixed at 2.5V.
- Q: What is the maximum output current?
- A: The maximum output current is 1.5A.
- Q: What is the switching frequency?
- A: The switching frequency is 1.25MHz.
- Q: What package is available?
- A: It comes in an 8-pin MSOP package with exposed pad.
