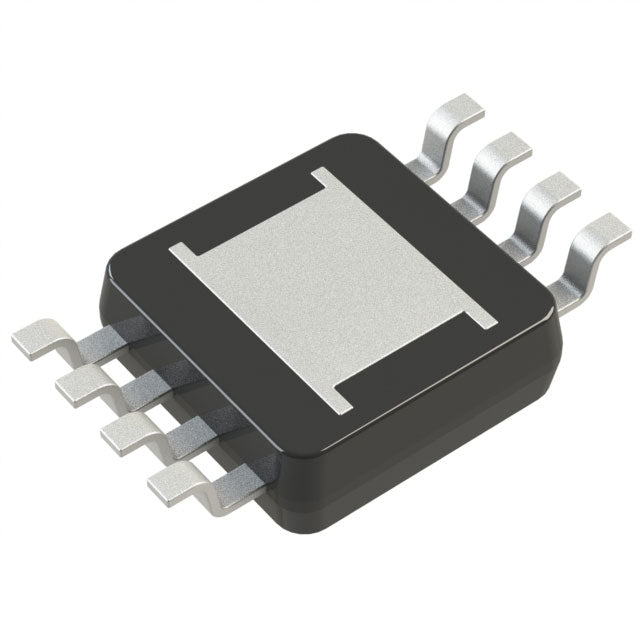

Analog Devices Inc. LT1767EMS8E-5#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.81 | $9.81 |
| 15+ | $9.50 | $142.50 |
| 25+ | $9.30 | $232.50 |
| 50+ | $8.78 | $439.00 |
| 100+ | $7.75 | $775.00 |
| N+ | $1.55 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck, SEPIC |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 25V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Current - Output | 1.5A |
| Frequency - Switching | 1.25MHz |
| Synchronous Rectifier | No |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-MSOP-EP |
| ROHS |  |
The LT1767EMS8E-5 is a high-performance step-down DC-DC converter from Analog Devices. It accepts a wide 3V to 25V input and provides a fixed 5V output at up to 1.5A. The 1.25MHz switching frequency enables the use of small, low-cost external components. Its versatility allows it to be used in buck or SEPIC topologies, making it suitable for automotive, industrial, and telecom applications.
- Wide Input Range: 3V to 25V input handles a variety of power sources, including automotive and industrial rails.
- High Output Current: 1.5A output capability powers a wide range of loads.
- High Frequency Operation: 1.25MHz switching reduces external component size and board space.
- Flexible Topology: Can be used as a buck or SEPIC converter for design flexibility.
Automotive Power
With a 3V to 25V input range, the LT1767 can handle automotive battery variations, providing a stable 5V supply for infotainment and ADAS systems.
Industrial Power Supplies
For industrial equipment operating from 12V or 24V rails, this converter efficiently steps down to 5V for control logic and sensors.
Distributed Power Systems
Its high 1.25MHz frequency allows for small capacitors and inductors, making it ideal for point-of-load conversion in distributed power architectures.
Telecom Equipment
In telecom infrastructure, the LT1767 provides a reliable 5V rail from a 12V bus, with high efficiency to reduce thermal stress.
Portable Instruments
For battery-powered instruments, the wide input range accommodates various battery chemistries, while the small package saves space.
- Q: What type of converter is the LT1767?
- A: It is a step-down (Buck) converter that can also be configured as a SEPIC.
- Q: What is the input voltage range?
- A: The input voltage range is 3V to 25V.
- Q: What is the output voltage?
- A: The output voltage is fixed at 5V.
- Q: What is the maximum output current?
- A: The maximum output current is 1.5A.
- Q: What is the switching frequency?
- A: The switching frequency is 1.25MHz.
- Q: What package is available?
- A: It is available in an 8-TSSOP or 8-MSOP exposed pad package.
