Normaler Preis $13.72
Normaler Preis $14.44 Verkaufspreis $13.72
Sale Ausverkauft
Quantity Unit Price Total Price
1 $13.72 $13.72
15+ $13.28 $199.20
25+ $13.00 $325.00
50+ $12.27 $613.50
100+ $10.83 $1,083.00
N+ $2.17 Price Inquiry
Versand wird beim Checkout berechnet
Anzahl
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Analog Devices Inc.
Product Series
Packaging Tube |
Function Step-Down
Output Configuration Positive
Topology Buck, SEPIC
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 4.3V
Voltage - Input (Max) 15V
Voltage - Output (Min/Fixed) 1.21V
Voltage - Output (Max) 12.9V
Current - Output 4.5A (Switch)
Frequency - Switching 500kHz
Synchronous Rectifier No
Operating Temperature 0°C ~ 125°C (TJ)
Grade -
Qualification -
Mounting Type Surface Mount
Package / Case TO-263-8, D2PAK (7 Leads + Tab), TO-263CA
Supplier Device Package DDPAK-7
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

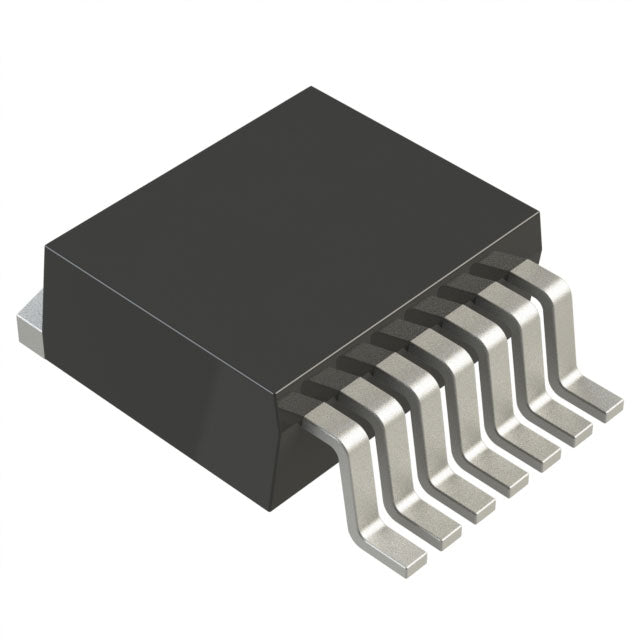

The LT1959CR#PBF is a versatile 500kHz monolithic buck switching regulator from Analog Devices. It operates from a 4.3V to 15V input and can deliver up to 4.5A of switch current. The output voltage is adjustable from 1.21V to 12.9V. Its high switching frequency allows for small, low-cost external components. The device can also be configured as a SEPIC converter. It is available in a TO-263-8 (D2PAK) package, suitable for automotive and industrial applications.

  • High Switching Frequency (500kHz): Reduces the size of external inductors and capacitors.
  • High Switch Current (4.5A): Supports high-power loads without external transistors.
  • Versatile Topology (Buck/SEPIC): Offers design flexibility for various input/output voltage relationships.
  • Wide Input Range (4.3V-15V): Handles automotive and industrial supply variations.

Automotive Power Supplies

Converts 12V automotive battery voltage (with transients) down to 5V or 3.3V for sensors, ECUs, and infotainment systems, with a wide input range.

Industrial Control Systems

Provides a robust, high-current 5V rail from a 12V or 15V industrial supply, withstanding voltage variations.

SEPIC Topology for Non-Inverting Buck-Boost

When configured as a SEPIC, it can regulate an output voltage that is above, below, or equal to the input, useful for battery systems with wide voltage swings.

Distributed Power Architectures

Acts as an intermediate bus converter, stepping down a 12V bus to a lower voltage for local POL regulators.

Networking Equipment

Powers line cards and switch fabrics from a 12V backplane, delivering high current with low ripple.

High-Power LED Drivers

Can be used in a buck configuration to drive high-current LEDs with accurate current control.

Q: What type of converter is the LT1959CR#PBF?
A: It is a step-down (Buck) converter, but can also be configured as a SEPIC.
Q: What is the input voltage range?
A: The input voltage range is 4.3V to 15V.
Q: What is the output voltage range?
A: The output voltage is adjustable from 1.21V to 12.9V.
Q: What is the maximum switch current?
A: The internal switch is rated for 4.5A.
Q: What is the switching frequency?
A: It operates at a fixed 500kHz switching frequency.
Q: What package is available?
A: It comes in a TO-263-8 (D2PAK) package.
Base Product Number : LT1959CR
4.3V-15V 4.5A 500kHz Automotive Buck DC-DC Converter High Power Industrial SEPIC TO-263-8
