Analog Devices Inc. LT1959CR#TRPBF

Zu Produktinformationen springen
1 von 1

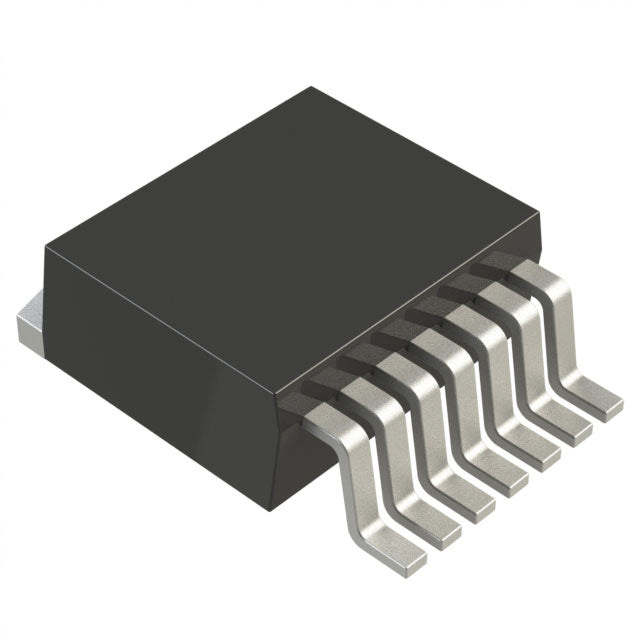

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Normaler Preis $29.90
Normaler Preis $7.48 Verkaufspreis $29.90
Sale Ausverkauft
Quantity Unit Price Total Price
1 $29.90 $29.90
15+ $6.88 $103.20
25+ $6.73 $168.25
50+ $6.36 $318.00
100+ $5.61 $561.00
N+ $1.12 Price Inquiry
Versand wird beim Checkout berechnet
Anzahl
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Analog Devices Inc.
Product Series
Packaging Tape & Reel (TR) |
Function Step-Down
Output Configuration Positive
Topology Buck, SEPIC
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 4.3V
Voltage - Input (Max) 15V
Voltage - Output (Min/Fixed) 1.21V
Voltage - Output (Max) 12.9V
Current - Output 4.5A (Switch)
Frequency - Switching 500kHz
Synchronous Rectifier No
Operating Temperature 0°C ~ 125°C (TJ)
Grade -
Qualification -
Mounting Type Surface Mount
Package / Case TO-263-8, D2PAK (7 Leads + Tab), TO-263CA
Supplier Device Package DDPAK-7
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The LT1959CR is a versatile 500kHz monolithic buck mode switching regulator from Analog Devices. It operates from a 4.3V to 15V input and can deliver output currents up to 4.5A via its internal switch. The output voltage is adjustable from 1.21V to 12.9V, making it suitable for a wide range of applications. Its high switching frequency allows for small, low-cost external components. The device can also be configured as a SEPIC converter for applications where the output may need to be higher or lower than the input. It is offered in a TO-263 (D2PAK) package for excellent thermal performance.

  • High Output Current: The 4.5A internal switch enables high-current step-down applications without requiring external FETs.
  • Wide Output Voltage Range: Adjustable output from 1.21V to 12.9V provides flexibility for various power supply requirements.
  • Versatile Topology: Can be used as a Buck or SEPIC converter, adapting to different input/output voltage relationships.
  • Compact Solution: The 500kHz switching frequency reduces the size of external inductors and capacitors.
  • Robust Package: The TO-263 (D2PAK) package ensures efficient heat dissipation for high-power operation.

High-Current Step-Down Power Supplies

With a 4.5A switch rating, the LT1959CR is ideal for generating high-current rails (e.g., 3.3V or 5V) from a 12V input bus in industrial and computing systems, delivering up to several amps of output current.

SEPIC Converters for Regulated Outputs

The LT1959CR can be configured as a SEPIC converter, allowing the output voltage to be above, below, or equal to the input. This is useful in automotive and battery systems where the input voltage varies widely.

12V Industrial Power Distribution

In industrial control systems with a 12V backplane, this regulator efficiently steps down to lower logic and sensor voltages, providing a robust and reliable power solution.

Point-of-Load (POL) Converters

The high current capability and 500kHz frequency make it suitable for POL converters in telecom and networking equipment, where space is at a premium but high efficiency is required.

Battery-Powered Equipment with Wide Voltage Range

For equipment powered by multi-cell batteries (e.g., 4-10 cells), the 4.3V to 15V input range allows the LT1959CR to maintain a regulated output as the battery voltage discharges.

Distributed Power Architectures

It can be used as an intermediate bus converter to step down a 12V or 15V bus to a lower voltage for further regulation, simplifying the overall power system design.

Q: What type of converter is the LT1959CR?
A: It is a step-down (Buck) switching regulator, also configurable as a SEPIC converter.
Q: What is the input voltage range?
A: The input voltage range is 4.3V to 15V.
Q: What is the output voltage range?
A: The output voltage is adjustable from 1.21V up to 12.9V.
Q: What is the maximum switch current?
A: The internal switch can handle up to 4.5A.
Q: What is the switching frequency?
A: The switching frequency is fixed at 500kHz.
Q: What package is available?
A: It is available in a TO-263-8 (D2PAK) package.
Base Product Number : LT1959CR
4.3V-15V 4.5A Switch 500kHz Analog Devices Buck D2PAK DC-DC Converter High Current SEPIC TO-263
Q: What type of converter is the LT1959CR?
A: It is a step-down (Buck) switching regulator, also configurable as a SEPIC converter.
Q: What is the input voltage range?
A: The input voltage range is 4.3V to 15V.
Q: What is the output voltage range?
A: The output voltage is adjustable from 1.21V up to 12.9V.
Q: What is the maximum switch current?
A: The internal switch can handle up to 4.5A.
Q: What is the switching frequency?
A: The switching frequency is fixed at 500kHz.
Q: What package is available?
A: It is available in a TO-263-8 (D2PAK) package.
