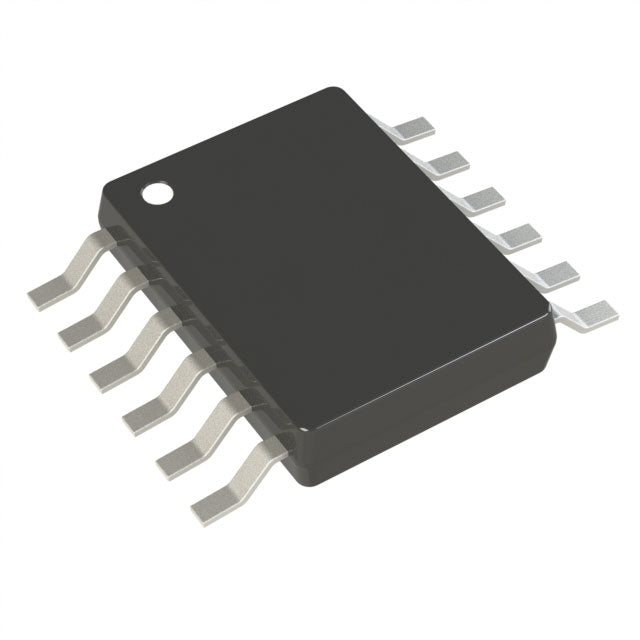

Analog Devices Inc. LT3045EMSE#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.93 | $8.93 |
| 15+ | $8.65 | $129.75 |
| 25+ | $8.46 | $211.50 |
| 50+ | $7.99 | $399.50 |
| 100+ | $7.05 | $705.00 |
| N+ | $1.41 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 0V |
| Voltage - Output (Max) | 15V |
| Voltage Dropout (Max) | 0.45V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 20 µA |
| Current - Supply (Max) | 25 mA |
| PSRR | 117dB ~ 53dB (120Hz ~ 10MHz) |
| Control Features | Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 12-MSOP-EP |
| ROHS |  |
The LT3045EMSE#TRPBF is a high-performance linear regulator from Analog Devices, engineered for applications demanding ultra-low noise and exceptional power supply rejection. It delivers up to 500mA with a programmable output up to 15V, while maintaining a low 20µA quiescent current. Its 0.45V dropout voltage at full load ensures efficiency in tight voltage margin designs. The 12-MSOP-EP package provides excellent thermal dissipation, making it a versatile choice for precision instrumentation, RF systems, and battery-powered devices.
- Ultra-Low Noise Operation: 0.8µVrms output noise ensures clean power for sensitive analog and RF circuits.
- High PSRR (117dB at 120Hz): Effectively rejects input ripple, ideal for post-switching-regulator filtering.
- Low Quiescent Current (20µA): Maximizes battery life in portable and always-on applications.
- Programmable Output to 15V: Flexible voltage setting via external resistors for diverse design requirements.
High-Resolution ADC Power Supply
The LT3045EMSE#TRPBF delivers ultra-low noise and high PSRR (117dB at 120Hz), making it ideal for powering precision ADCs and DACs where noise directly impacts conversion accuracy.
RF and Wireless Transceiver Supply
With PSRR extending to 53dB at 10MHz, this LDO effectively filters high-frequency noise from switching regulators, ensuring clean power for RF transceivers and VCOs.
Battery-Powered IoT Sensors
The 20µA quiescent current extends battery life in always-on IoT devices, while the 500mA output supports intermittent high-current sensor bursts.
Low-Noise Audio Equipment
Ultra-low output noise (0.8µVrms) preserves audio signal integrity in high-end DACs, headphone amplifiers, and studio equipment.
FPGA Core and I/O Rails
The programmable output up to 15V and 500mA capability make it suitable for FPGA auxiliary rails requiring tight regulation and low ripple.
Automotive Sensor Conditioning
Wide input range and robust thermal package (12-MSOP-EP) support automotive power conditioning for sensors and ECUs.
- Q: What is the output voltage range of the LT3045EMSE#TRPBF?
- A: The LT3045EMSE#TRPBF provides a programmable output voltage up to 15V, adjustable via external resistors.
- Q: What is the maximum output current?
- A: This LDO can deliver up to 500mA of continuous output current.
- Q: What is the input voltage range?
- A: The input voltage range is from 0V up to 15V (with a maximum of 20V), allowing operation from low-voltage rails.
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.45V at a 500mA load, enabling efficient operation with minimal headroom.
- Q: What is the quiescent current?
- A: The quiescent current is only 20µA, making it ideal for battery-powered applications.
- Q: What package is available?
- A: It comes in a 12-MSOP-EP (exposed pad) package for enhanced thermal performance.
