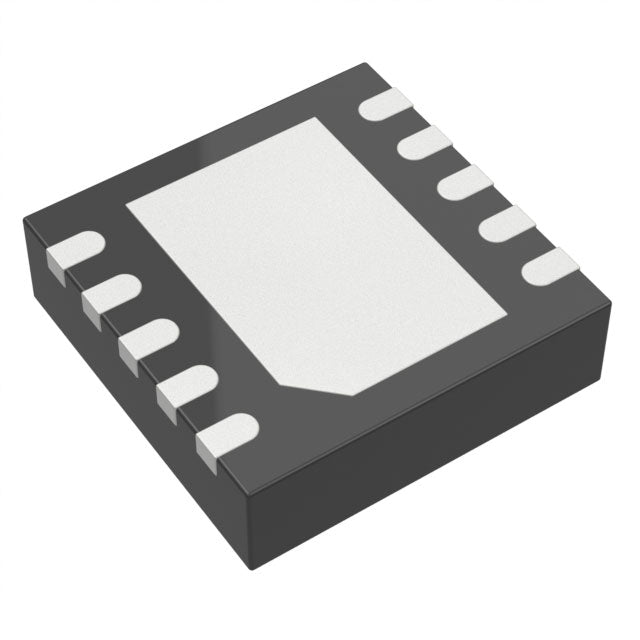

Analog Devices Inc. LT3065IDD-1.5#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.72 | $14.72 |
| 15+ | $3.32 | $49.80 |
| 25+ | $3.25 | $81.25 |
| 50+ | $3.07 | $153.50 |
| 100+ | $2.71 | $271.00 |
| N+ | $0.54 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.51V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 110 µA |
| Current - Supply (Max) | 25 mA |
| PSRR | 78dB (120Hz) |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| ROHS |  |
The LT3065IDD-1.5#PBF is a high-performance low dropout linear regulator providing a fixed 1.5V output at up to 500mA. With 78dB PSRR at 120Hz and a low 110 µA quiescent current, it delivers exceptionally clean power for precision analog and digital loads. The 10-DFN (3x3) package ensures compact, thermally efficient designs.
- 78dB PSRR at 120Hz provides superior low-frequency noise rejection.
- 500mA output current supports low-voltage digital cores.
- Low quiescent current (110 µA) enhances efficiency in battery systems.
- Compact 3x3mm DFN package saves board space.
FPGA and DSP Core Supplies
The 1.5V output at 500mA is ideal for powering low-voltage cores in FPGAs and DSPs, with 78dB PSRR at 120Hz ensuring stable operation.
High-End Audio Equipment
Excellent low-frequency noise rejection makes it suitable for analog audio stages requiring clean 1.5V references.
Precision Instrumentation
The low quiescent current and high PSRR support accurate measurements in laboratory-grade instruments.
Portable Communication Devices
Its low dropout and compact DFN package enable efficient power delivery in handheld radios and GPS modules.
Server and Storage Systems
Reliable 1.5V rails for memory and logic circuits in data center equipment, with robust thermal performance.
- Q: What is the output voltage of the LT3065IDD-1.5#PBF?
- A: The fixed output voltage is 1.5V.
- Q: What is the maximum output current?
- A: It can deliver up to 500mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.51V at 500mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 110 µA.
- Q: What package is available?
- A: It comes in a 10-DFN (3x3) package.
