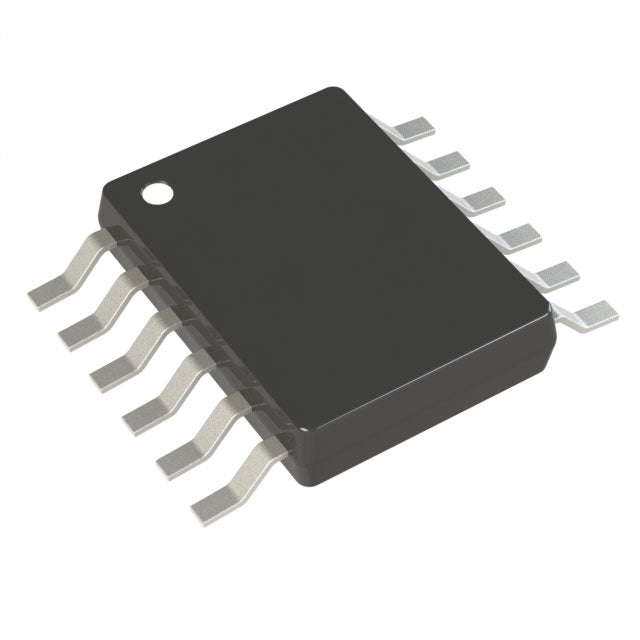

Analog Devices Inc. LT3065IMSE-2.5#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.75 | $12.75 |
| 15+ | $2.93 | $43.95 |
| 25+ | $2.87 | $71.75 |
| 50+ | $2.71 | $135.50 |
| 100+ | $2.39 | $239.00 |
| N+ | $0.48 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.51V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 110 µA |
| Current - Supply (Max) | 25 mA |
| PSRR | 72dB (120Hz) |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 12-MSOP-EP |
| ROHS |  |
The LT3065IMSE-2.5 is a high-performance linear regulator from Analog Devices, delivering a fixed 2.5V output with up to 500mA of current. Its low 110µA quiescent current and 0.51V dropout voltage make it an efficient choice for battery-powered and industrial applications. The 12-lead MSOP-EP package ensures excellent thermal dissipation, while 72dB PSRR at 120Hz provides clean, stable power for noise-sensitive circuits.
- Extended Battery Life: Ultra-low 110µA quiescent current minimizes standby power draw, ideal for portable devices.
- Clean Power Delivery: 72dB PSRR at 120Hz effectively filters ripple, ensuring stable operation for sensitive analog loads.
- High Efficiency: Low 0.51V dropout at 500mA reduces power dissipation, improving thermal management.
- Robust Package: 12-MSOP-EP offers superior heat sinking for reliable operation in demanding environments.
Battery-Powered Industrial Sensors
The low 110 µA quiescent current and 500mA output capability make it ideal for powering precision analog sensors in industrial IoT devices, extending battery life while maintaining stable 2.5V rail.
Noise-Sensitive Audio Equipment
With 72dB PSRR at 120Hz, this LDO effectively rejects mains-frequency ripple, ensuring clean power for audio DACs and op-amps in portable audio interfaces.
Automotive ECU Power Rails
The wide input voltage range (up to 40V) and robust MSOP-EP package allow direct connection to automotive battery lines, providing a regulated 2.5V supply for microcontrollers and CAN transceivers.
Portable Medical Devices
Low dropout of 0.51V at full load maximizes efficiency when operating from a single Li-ion cell, while the low noise characteristics support sensitive biosignal measurement circuits.
FPGA Core Supply
For low-power FPGAs requiring a 2.5V core, this LDO offers fast transient response and stable output, reducing the need for larger bulk capacitors.
Telecom Line Cards
The high PSRR and thermal performance of the MSOP-EP package make it suitable for powering PLLs and SerDes transceivers in networking equipment where clean supply rails are critical.
- Q: What is the output voltage of the LT3065IMSE-2.5?
- A: The fixed output voltage is 2.5V.
- Q: What is the maximum output current?
- A: It can deliver up to 500mA.
- Q: What is the input voltage range?
- A: The input voltage range is from 2.5V up to 40V (absolute maximum).
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.51V at a 500mA load.
- Q: What is the quiescent current?
- A: The quiescent current is a low 110 µA, making it suitable for battery-powered applications.
- Q: What package is available?
- A: It comes in a 12-lead MSOP-EP package.
