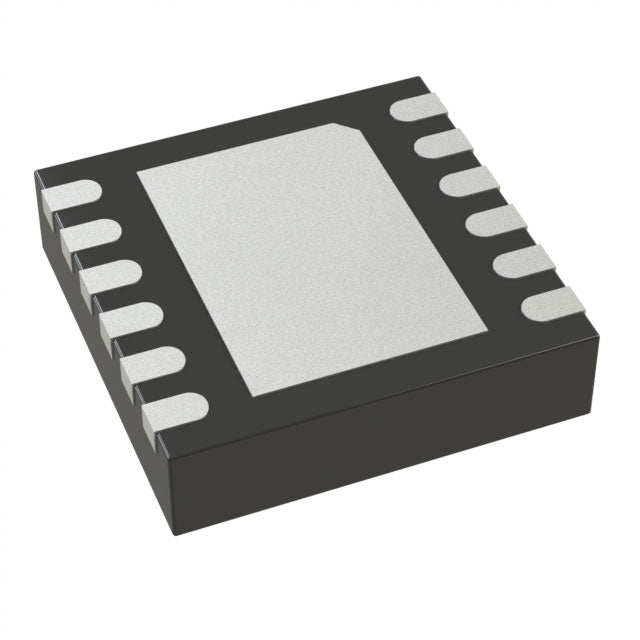

Analog Devices Inc. LT3652EDD#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.49 | $9.49 |
| 15+ | $9.19 | $137.85 |
| 25+ | $8.99 | $224.75 |
| 50+ | $8.49 | $424.50 |
| 100+ | $7.49 | $749.00 |
| N+ | $1.50 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Multi-Chemistry |
| Number of Cells | - |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | - |
| Charge Current - Max | 2A |
| Battery Pack Voltage | 14.4V |
| Voltage - Supply (Max) | 32V |
| Interface | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (3x3) |
| ROHS |  |
LT3652EDD#PBF Multi-Chemistry Battery Charger IC
The LT3652EDD#PBF from Analog Devices is a high-performance multi-chemistry battery charger integrated circuit designed for versatile charging applications. This advanced IC supports programmable constant current charging up to 2A, making it ideal for a wide range of battery-powered systems and renewable energy projects.
Key Features & Benefits
- Multi-Chemistry Support: Compatible with various battery types for flexible system design
- 2A Maximum Charge Current: Programmable constant current charging for optimal battery health
- Wide Input Voltage Range: Supports up to 32V supply voltage for diverse power sources
- 14.4V Battery Pack Voltage: Suitable for multi-cell battery configurations
- Programmable Features: Customizable current and timer settings for precise charge control
- Compact Surface Mount Package: 12-WFDFN with exposed pad for efficient thermal management
- Extended Temperature Range: Operates reliably from -40°C to 125°C (TJ)
Applications
Perfect for solar charging systems, portable power banks, industrial battery management, automotive applications, and renewable energy storage solutions. The LT3652EDD#PBF delivers reliable performance in demanding environments.
Why Choose HQICKEY?
We guarantee 100% authentic Analog Devices components with full manufacturer warranty support. All products are sourced directly from authorized distributors and undergo strict quality verification. Fast global shipping available.
