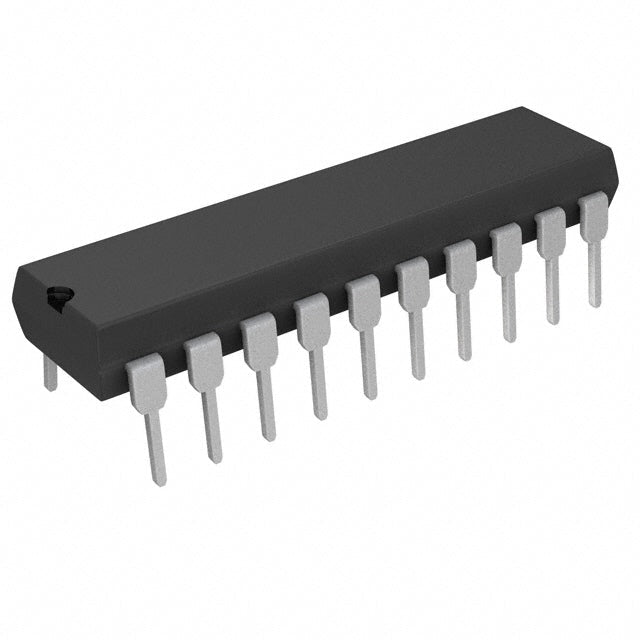

Analog Devices Inc. LTC1099ACN#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $30.02 | $30.02 |
| 15+ | $29.07 | $436.05 |
| 25+ | $28.44 | $711.00 |
| 50+ | $26.86 | $1,343.00 |
| 100+ | $23.70 | $2,370.00 |
| N+ | $4.74 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 400k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Flash |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| ROHS |  |
The Analog Devices LTC1099ACN#PBF is a reliable 8-bit analog-to-digital converter featuring a 400 kSPS sampling rate. Housed in a convenient 20-pin DIP package, it offers a straightforward parallel interface for easy integration. This ADC is well-suited for a variety of applications, including battery-powered devices, motor control, and educational projects, providing a simple and effective solution for converting analog signals to digital.
- Easy Integration: The 20-pin DIP package and parallel interface simplify PCB design and prototyping.
- Cost-Effective: 8-bit resolution provides an economical solution for applications not requiring high precision.
- Moderate Speed: 400 kSPS sampling rate is adequate for many control and monitoring applications.
- Proven Technology: S/H-ADC architecture ensures reliable and consistent conversion performance.
Battery-Powered Instruments
The low power consumption of the LTC1099ACN#PBF, combined with its 8-bit resolution, makes it ideal for portable multimeters and handheld data loggers where power efficiency is critical.
Simple Motor Control Loops
In basic motor drivers, this ADC can digitize current or position feedback signals at 400 kSPS, providing sufficient speed for closed-loop speed and torque control.
Educational and Hobbyist Projects
The through-hole DIP package and simple parallel interface make this ADC perfect for breadboard-based projects, teaching students the fundamentals of analog-to-digital conversion.
Legacy System Replacement
For upgrading older 8-bit systems, the LTC1099ACN#PBF offers a drop-in compatible parallel interface, allowing for minimal redesign while improving performance.
Industrial Process Monitoring
With its 0°C to 70°C range, it can be used in factory automation to monitor temperature or pressure sensors, providing digital data to a central PLC.
Audio Effects Pedals
In DIY guitar effects, this ADC can digitize control voltages (e.g., from an expression pedal) at a fast rate, enabling smooth and responsive parameter changes.
- Q: What is the resolution of the LTC1099ACN#PBF?
- A: This ADC provides an 8-bit resolution, offering a cost-effective solution for basic digital conversion needs.
- Q: What is the sampling rate?
- A: The LTC1099ACN#PBF operates at a sampling rate of 400 kSPS (400k samples per second), suitable for moderate-speed applications.
- Q: How many channels does it have?
- A: It features a single input channel for converting one analog signal at a time.
- Q: What interface does this ADC use?
- A: It uses a parallel interface, simplifying connection to microprocessors and digital systems.
- Q: What is the package type?
- A: It comes in a 20-pin DIP (0.300", 7.62mm) package, which is through-hole mounted for easy prototyping and assembly.
- Q: What is the operating temperature range?
- A: The device is specified for a commercial temperature range of 0°C to 70°C.
