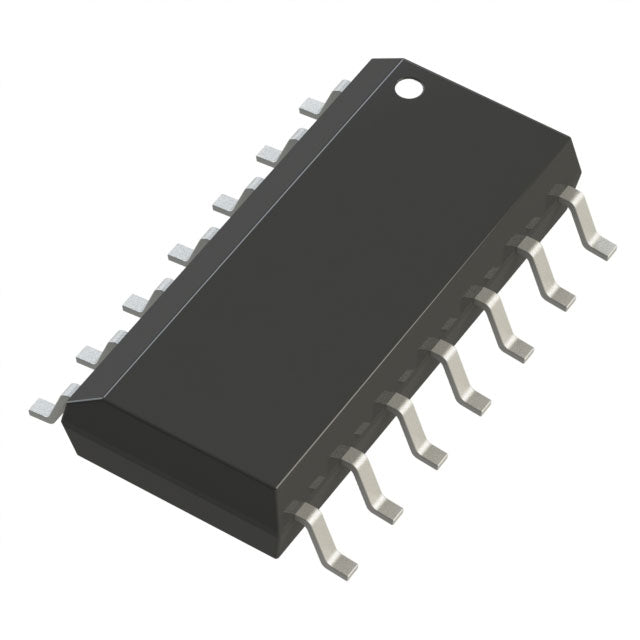

Analog Devices Inc. LTC1265CS#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.42 | $11.42 |
| 15+ | $11.06 | $165.90 |
| 25+ | $10.82 | $270.50 |
| 50+ | $10.22 | $511.00 |
| 100+ | $9.02 | $902.00 |
| N+ | $1.80 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Function | Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive or Negative |
| Topology | Buck, Buck-Boost, SEPIC |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 13V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 13V |
| Current - Output | 1.2A (Switch) |
| Frequency - Switching | Up to 700kHz |
| Synchronous Rectifier | No |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SO |
| ROHS |  |
The LTC1265CS#PBF from Analog Devices is a high-efficiency Buck DC-DC converter with versatile topology options, including Buck-Boost and SEPIC. It operates from a 4V to 13V input and delivers an adjustable output from 1.25V to 13V, with a 1.2A switch current. The switching frequency extends up to 700kHz, allowing for small external components. Housed in a 14-SOIC package, it is suitable for automotive, industrial, and telecom power supplies.
- Multi-Topology Support: Can be configured as Buck, Buck-Boost, or SEPIC for design flexibility.
- Wide Output Range: 1.25V to 13V covers logic, I/O, and analog rails.
- High Frequency Operation: Up to 700kHz reduces inductor and capacitor sizes.
- Robust Package: 14-SOIC is widely available and easy to solder.
Automotive Power Supplies
With a 4V-13V input range, the LTC1265CS#PBF can regulate 5V or 3.3V rails from a car battery (9V-16V with transients), powering ECUs and sensors.
Industrial Control Systems
For 12V industrial buses, this buck converter provides a stable 5V rail for microcontrollers and logic circuits, with up to 1.2A of current.
Telecom and Networking Equipment
In 12V-powered networking gear, the LTC1265CS#PBF steps down to 3.3V or 2.5V for FPGAs and ASICs, with high efficiency to reduce heat.
Battery Chargers
The buck-boost or SEPIC configurations allow charging a battery from a varying input source, such as a solar panel or unregulated wall adapter.
Distributed Power Architectures
As a point-of-load converter, it takes a 5V or 12V intermediate bus and provides a clean, regulated low-voltage rail close to the load.
Portable Instruments
For devices powered by 6-12V adapters, this converter efficiently generates a 3.3V or 5V rail, supporting battery charging and system power.
- Q: What type of converter is the LTC1265CS#PBF?
- A: It is a versatile Buck (step-down) converter that can also be configured as Buck-Boost or SEPIC.
- Q: What is the input voltage range?
- A: The input voltage range is from 4V to 13V.
- Q: What is the output voltage range?
- A: The output voltage is adjustable from 1.25V to 13V.
- Q: What is the maximum switch current?
- A: The maximum switch current is 1.2A.
- Q: What is the switching frequency?
- A: The switching frequency is up to 700kHz.
- Q: What package is available?
- A: It comes in a 14-SOIC package.
