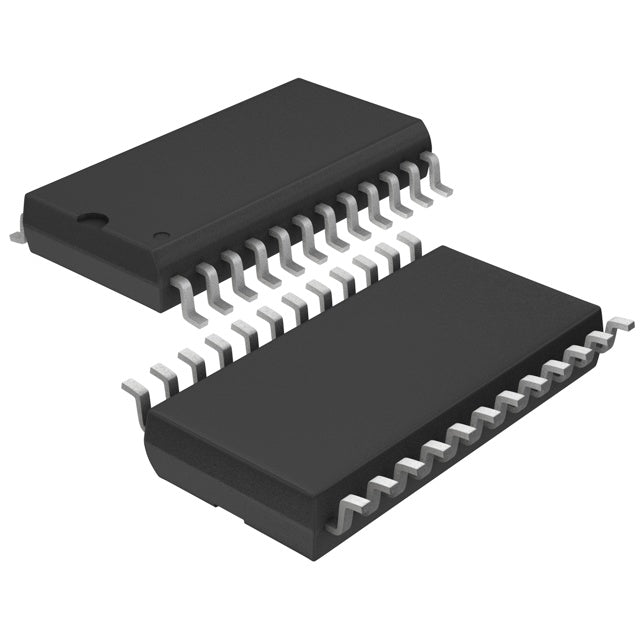

Analog Devices Inc. LTC1274CSW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.49 | $19.49 |
| 15+ | $18.88 | $283.20 |
| 25+ | $18.47 | $461.75 |
| 50+ | $17.44 | $872.00 |
| 100+ | $15.39 | $1,539.00 |
| N+ | $3.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V, -2.45V ~ 5.25 |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| ROHS |  |
The LTC1274CSW#PBF is a 12-bit analog-to-digital converter from Analog Devices, offering a sampling rate of 100k SPS. It features a single input channel and a parallel interface for high-speed data transfer. The S/H-ADC architecture ensures accurate sampling, while external or internal reference options provide flexibility. Housed in a 24-SOIC package, this ADC is ideal for industrial control, data logging, and embedded systems.
- Fast Parallel Interface: Enables high-speed data transfer to microprocessors and DSPs.
- Proven Architecture: S/H-ADC design ensures reliable and accurate conversions.
- Flexible Reference: Supports both external and internal references for design flexibility.
- Industry-Standard Package: 24-SOIC package is widely used and easy to source.
Embedded Control Systems
The parallel interface of the LTC1274CSW#PBF allows for direct connection to microprocessors and DSPs, making it ideal for embedded control applications requiring fast data transfer.
Industrial Process Control
With 12-bit resolution and 100k SPS sampling, this ADC is well-suited for industrial process control loops that monitor and adjust parameters like temperature and pressure.
Data Logging Systems
The reliable performance and parallel output make it a good choice for data logging systems that capture and store analog signals for later analysis.
Test Equipment
In benchtop test equipment, the LTC1274CSW#PBF provides accurate digitization of signals for measurement and analysis applications.
Motor Control
This ADC can be used in motor control systems to digitize current and voltage feedback signals, enabling precise control of motor speed and torque.
Power Supply Monitoring
Monitor output voltages and currents in power supply designs, ensuring stable and reliable operation through accurate digital feedback.
- Q: What is the resolution of the LTC1274CSW#PBF?
- A: The LTC1274CSW#PBF is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate of the LTC1274CSW#PBF?
- A: It has a sampling rate of 100k SPS.
- Q: How many input channels does the LTC1274CSW#PBF have?
- A: It features a single (1) input channel.
- Q: What interface does the LTC1274CSW#PBF use?
- A: It uses a parallel interface.
- Q: What is the architecture of the LTC1274CSW#PBF?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type for the LTC1274CSW#PBF?
- A: It is available in a 24-SOIC package.
