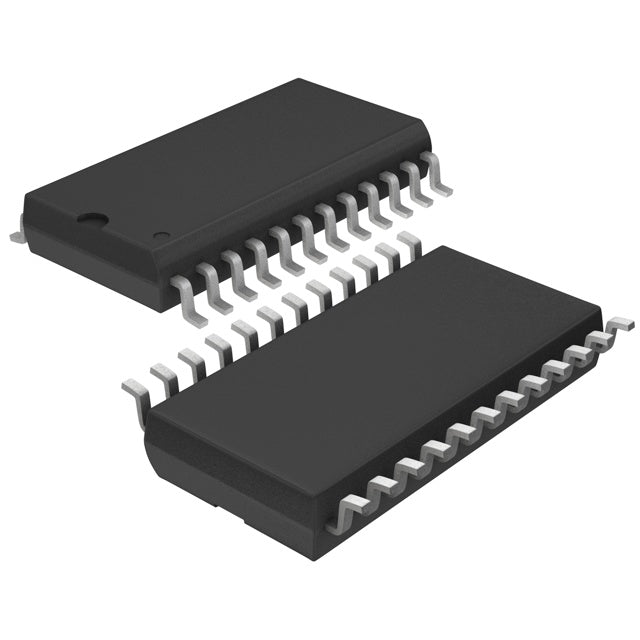

Analog Devices Inc. LTC1276BCSW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $33.48 | $33.48 |
| 15+ | $32.42 | $486.30 |
| 25+ | $31.72 | $793.00 |
| 50+ | $29.95 | $1,497.50 |
| 100+ | $26.43 | $2,643.00 |
| N+ | $5.29 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 300k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | ±5V, 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| ROHS |  |
The LTC1276BCSW#PBF from Analog Devices is a 12-bit, 300 kSPS analog-to-digital converter featuring a single channel and a parallel interface. This S/H-ADC includes an internal reference, simplifying design and reducing external component count. Operating within a temperature range of 0°C to 70°C and housed in a 24-SOIC package, it is a reliable choice for industrial and instrumentation applications requiring accurate, medium-speed conversion.
- Integrated Reference: The internal reference reduces BOM cost and simplifies the PCB layout, saving design time.
- Proven Accuracy: 12-bit resolution provides a good balance between precision and cost for many industrial applications.
- Easy Integration: The parallel interface allows for straightforward connection to microcontrollers and DSPs.
- Compact SOIC Package: The 24-SOIC package is widely used and easy to manufacture with.
Precision Data Logging
The 12-bit resolution and 300 kSPS sampling rate of the LTC1276BCSW#PBF make it suitable for precision data loggers that need to accurately capture slow-changing signals like temperature and pressure.
Industrial Process Control
In industrial automation, this ADC can digitize sensor outputs for PLCs and process controllers, providing reliable 12-bit accuracy for monitoring and control loops.
Battery-Powered Instruments
With its internal reference and moderate speed, this ADC is an excellent choice for portable, battery-powered measurement devices where power efficiency and accuracy are key.
Medical Instrumentation
For patient monitoring equipment, the LTC1276BCSW#PBF offers the precision needed for vital sign acquisition, ensuring accurate readings for diagnostic purposes.
Motor Control Systems
In motor drives, the ADC's parallel interface allows for fast data transfer to the controller, enabling precise current and voltage sensing for efficient motor control.
- Q: What is the resolution of the LTC1276BCSW#PBF?
- A: It is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate of the LTC1276BCSW#PBF?
- A: It has a maximum sampling rate of 300 kSPS (kilo Samples Per Second).
- Q: How many channels does this ADC have?
- A: It features a single (1) input channel.
- Q: What interface does the LTC1276BCSW#PBF use?
- A: It uses a parallel digital interface.
- Q: What is the architecture of this device?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type?
- A: It is available in a 24-SOIC (0.295", 7.50mm Width) package.
