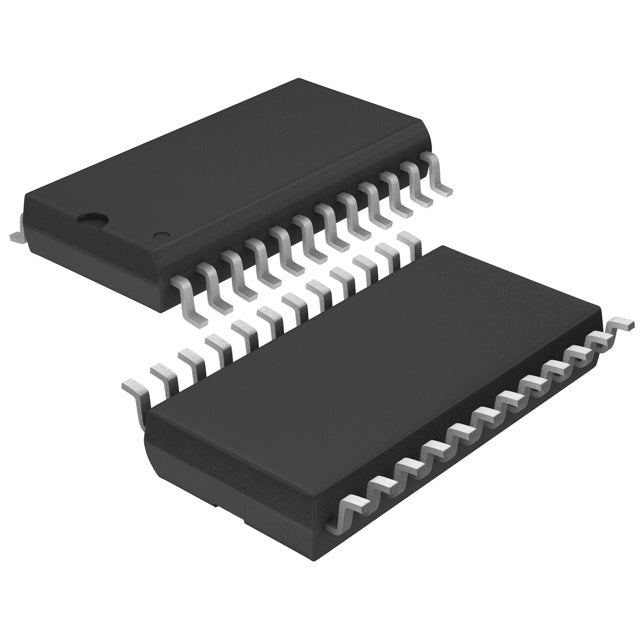

Analog Devices Inc. LTC1277ISW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $21.60 | $21.60 |
| 15+ | $20.92 | $313.80 |
| 25+ | $20.47 | $511.75 |
| 50+ | $19.33 | $966.50 |
| 100+ | $17.06 | $1,706.00 |
| N+ | $3.41 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V, -2.45V ~ 5.25 |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| ROHS |  |
The LTC1277ISW#PBF is a 12-bit, 100 kSPS analog-to-digital converter from Analog Devices, designed for low-power, high-accuracy applications. It features a single input channel and a parallel interface for straightforward integration. The sample-and-hold architecture ensures reliable conversion. With an industrial temperature range of -40°C to 85°C, it is suitable for demanding environments. This ADC is perfect for battery-powered instruments, data logging, and industrial control systems.
- Low Power Consumption: Ideal for battery-powered and portable applications, extending operational life.
- Accurate 12-Bit Conversion: Provides high precision for measurement and control systems.
- Industrial Temperature Range: Operates reliably from -40°C to 85°C in harsh conditions.
- Compact SOIC Package: Saves valuable PCB space in space-constrained designs.
Precision Data Logging
The 12-bit resolution and 100 kSPS sampling rate are well-suited for precision data logging systems that monitor slow-changing signals.
Battery-Powered Instruments
Its low power consumption and compact SOIC package make it ideal for portable, battery-operated measurement devices.
Industrial Process Control
The wide temperature range and reliable performance support industrial process control and monitoring applications.
Medical Monitoring Devices
Accurate 12-bit conversion is suitable for medical devices like patient monitors and diagnostic equipment.
Environmental Sensing
This ADC can digitize outputs from environmental sensors (temperature, pressure) with sufficient precision for analysis.
- Q: What is the resolution of the LTC1277ISW#PBF?
- A: It is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The sampling rate is 100 kSPS (100k samples per second).
- Q: How many input channels does it have?
- A: It has a single (1) input channel.
- Q: What interface does this ADC use?
- A: It uses a parallel interface.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
- Q: What is the package type?
- A: It is available in a 24-SOIC package.
