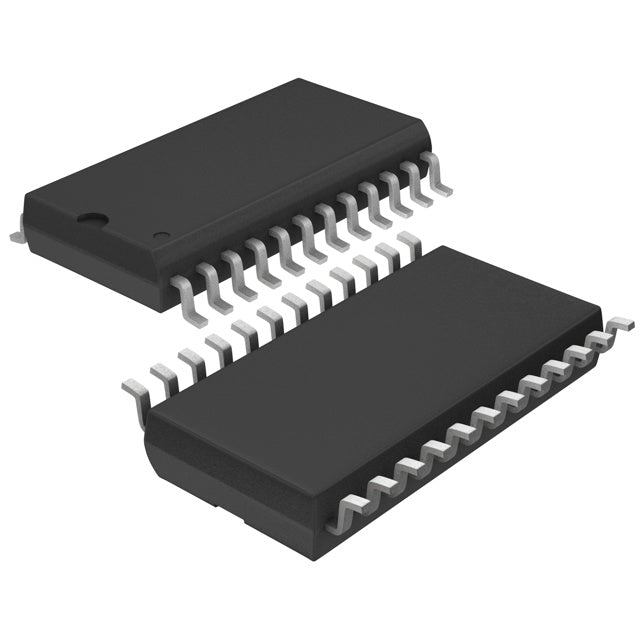

Analog Devices Inc. LTC1278-5CSW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $35.02 | $35.02 |
| 15+ | $33.91 | $508.65 |
| 25+ | $33.17 | $829.25 |
| 50+ | $31.33 | $1,566.50 |
| 100+ | $27.65 | $2,765.00 |
| N+ | $5.53 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V, -2.45V ~ 5.25 |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| ROHS |  |
The LTC1278-5CSW#PBF from Linear Technology is a 12-bit, single-channel analog-to-digital converter (ADC) featuring a sample-and-hold (S/H) architecture. It offers a maximum sampling rate of 500k SPS, making it suitable for a wide range of precision measurement and control applications. The device supports both external and internal references, providing design flexibility. Its parallel interface ensures straightforward integration with microprocessors and DSPs. Housed in a 24-SOIC package, the LTC1278-5CSW#PBF operates over a temperature range of 0°C to 70°C. Typical applications include data acquisition systems, medical instrumentation, and industrial automation.
- Accurate 12-Bit Conversion: Ensures high precision in digitizing analog signals, critical for measurement and control systems.
- Moderate Sampling Rate: The 500k SPS rate is ideal for a balance between speed and power consumption in many applications.
- Flexible Reference Options: Supports both external and internal references, allowing optimization for accuracy or simplicity.
- Parallel Interface: Enables fast and efficient data transfer to host processors.
- Compact SOIC Package: Saves board space in space-constrained designs.
Precision Data Acquisition Systems
The LTC1278-5CSW#PBF, with its 12-bit resolution and 500k SPS sampling rate, is well-suited for precision data acquisition systems that require accurate digitization of moderate-speed signals, such as in industrial process control and monitoring.
Battery-Powered Instruments
Its low power consumption and 0°C to 70°C operating range make it suitable for portable and battery-powered instruments, including handheld multimeters and data loggers.
Medical Instrumentation
In medical devices like patient monitors and diagnostic equipment, the LTC1278-5CSW#PBF provides reliable conversion of biosignals with sufficient speed and accuracy.
Automotive Sensor Interfaces
The device can be used in automotive applications for digitizing sensor outputs, such as temperature and pressure sensors, in engine control units (ECUs) and body control modules.
Industrial Automation
For industrial automation, this ADC can interface with various sensors in PLCs (Programmable Logic Controllers) and distributed control systems (DCS), ensuring accurate data acquisition for process control.
Communication Systems
The LTC1278-5CSW#PBF can be used in base station and communication equipment for digitizing control and monitoring signals, providing reliable performance in a compact package.
- Q: What is the LTC1278-5CSW#PBF ADC type?
- A: The LTC1278-5CSW#PBF is a 12-bit, single-channel, sample-and-hold (S/H) analog-to-digital converter.
- Q: What is the resolution of the LTC1278-5CSW#PBF?
- A: The LTC1278-5CSW#PBF has a resolution of 12 bits.
- Q: What is the sampling rate of the LTC1278-5CSW#PBF?
- A: The LTC1278-5CSW#PBF supports a maximum sampling rate of 500k SPS (500k samples per second).
- Q: How many channels does the LTC1278-5CSW#PBF have?
- A: The LTC1278-5CSW#PBF has 1 input channel.
- Q: What interface does the LTC1278-5CSW#PBF use?
- A: The LTC1278-5CSW#PBF uses a parallel interface for data output.
- Q: What is the package type of the LTC1278-5CSW#PBF?
- A: The LTC1278-5CSW#PBF is available in a 24-SOIC (0.295", 7.50mm Width) package.
