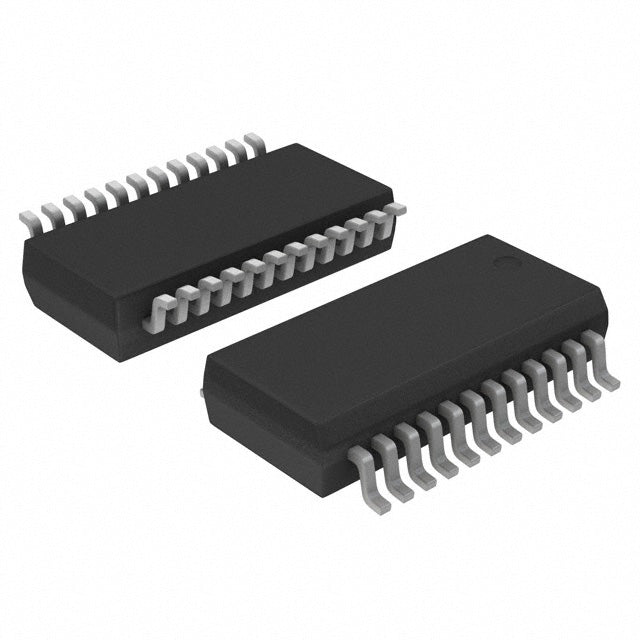

Analog Devices Inc. LTC1279CG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.58 | $19.58 |
| 15+ | $18.96 | $284.40 |
| 25+ | $18.55 | $463.75 |
| 50+ | $17.52 | $876.00 |
| 100+ | $15.46 | $1,546.00 |
| N+ | $3.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 600k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V, -2.45V ~ 5.25 |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 24-SSOP |
| ROHS |  |
The LTC1279CG#PBF from Analog Devices is a high-performance 12-bit analog-to-digital converter (ADC) featuring a maximum sampling rate of 600k SPS. It integrates a sample-and-hold circuit and offers a parallel interface for efficient data transfer. This single-channel ADC is designed for applications requiring a balance of speed and resolution, such as data acquisition, industrial control, and medical instrumentation. It operates over a commercial temperature range of 0°C to 70°C and is available in a compact 24-pin SSOP package.
- High-Speed Conversion: 600k SPS sampling rate enables digitization of fast-changing signals for real-time processing.
- Precision 12-Bit Resolution: Provides 4096 discrete levels, ensuring accurate representation of analog input signals.
- Fast Parallel Interface: Simplifies high-speed data transfer to microcontrollers and DSPs without serial clock overhead.
- Integrated Sample-and-Hold: Eliminates the need for an external S/H circuit, reducing component count and board space.
High-Speed Data Acquisition Systems
The 600k SPS sampling rate and parallel interface make the LTC1279CG#PBF ideal for digitizing fast analog signals in data acquisition systems where throughput is critical.
Industrial Process Control
With 12-bit resolution, this ADC provides sufficient precision for monitoring and controlling industrial parameters like voltage, current, and temperature in automation systems.
Medical Instrumentation
The device's speed and accuracy are suitable for medical devices requiring digitization of biological signals, such as patient monitoring equipment.
Test and Measurement Equipment
Its parallel output and high sampling rate enable use in oscilloscopes, spectrum analyzers, and other test instruments that need fast, accurate waveform digitization.
Motor Control Systems
The ADC can digitize current and voltage feedback signals in motor drives, enabling precise and responsive control loops in industrial and automotive applications.
- Q: What type of ADC is the LTC1279CG#PBF?
- A: It is a 12-bit successive approximation (S/H-ADC) analog-to-digital converter with a sample-and-hold front end.
- Q: What is the resolution and sampling rate?
- A: The LTC1279CG#PBF offers 12-bit resolution and a maximum sampling rate of 600k SPS (samples per second).
- Q: How many input channels does it have?
- A: It features a single (1) input channel.
- Q: What digital interface does it use?
- A: It uses a parallel digital interface for high-speed data transfer.
- Q: What is the operating temperature range?
- A: The device is specified for commercial operation from 0°C to 70°C.
- Q: What package is available?
- A: It comes in a 24-pin SSOP package (0.209", 5.30mm Width).
