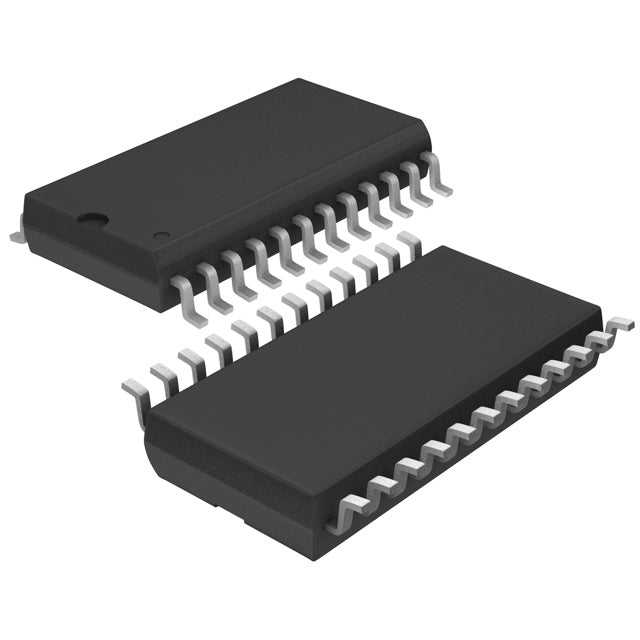

Analog Devices Inc. LTC1279CSW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $29.45 | $29.45 |
| 15+ | $28.52 | $427.80 |
| 25+ | $27.90 | $697.50 |
| 50+ | $26.35 | $1,317.50 |
| 100+ | $23.25 | $2,325.00 |
| N+ | $4.65 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 600k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V, -2.45V ~ 5.25 |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| ROHS |  |
The LTC1279CSW#PBF is a 12-bit, single-channel analog-to-digital converter from Analog Devices, featuring a 600 kSPS sampling rate. Its parallel interface allows for straightforward connection to microprocessors. The S/H-ADC architecture ensures reliable sample-and-hold operation. This ADC is a solid choice for industrial data acquisition, motor control, and medical instrumentation.
- Reliable Performance: 12-bit resolution and 600 kSPS speed offer a balanced solution for many embedded applications.
- Simple Parallel Interface: Easy to interface with legacy microcontrollers and DSPs.
- Proven Architecture: S/H-ADC design ensures accurate sampling of analog signals.
- Standard SOIC Package: 24-SOIC package is easy to handle and widely available.
- Cost-Effective: Provides a good balance of performance and cost for mid-range applications.
Industrial Data Acquisition
The 600 kSPS sampling rate and 12-bit resolution are well-suited for digitizing vibration, temperature, and pressure signals in industrial monitoring systems.
Motor Control Systems
Provides fast and accurate current/voltage feedback for closed-loop motor control in factory automation, improving torque and speed regulation.
Medical Instrumentation
Ideal for patient monitoring devices that require moderate-speed, high-accuracy conversion of vital signs like ECG and blood pressure.
Audio Processing
The 12-bit resolution and parallel output can be used in professional audio equipment for digitizing analog audio signals with low distortion.
Automotive Test Systems
Used in engine control units (ECUs) for sensor signal conditioning, operating reliably in 0°C to 70°C environments.
Power Supply Monitoring
Can monitor output voltages and currents in power supplies, enabling precise regulation and protection features.
- Q: What is the resolution of the LTC1279CSW?
- A: It is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The LTC1279CSW has a 600 kSPS sampling rate.
- Q: How many channels does it have?
- A: It has 1 input channel.
- Q: What interface does it use?
- A: It uses a Parallel interface.
- Q: What is the architecture?
- A: It uses a S/H-ADC architecture.
- Q: What is the package type?
- A: It comes in a 24-SOIC package.
