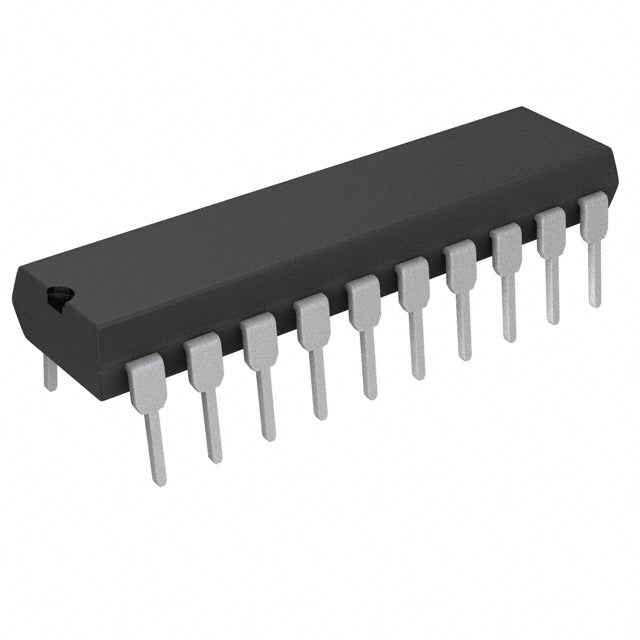

Analog Devices Inc. LTC1290CIN#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $54.09 | $54.09 |
| 15+ | $52.38 | $785.70 |
| 25+ | $51.25 | $1,281.25 |
| 50+ | $48.40 | $2,420.00 |
| 100+ | $42.71 | $4,271.00 |
| N+ | $8.54 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 50k |
| Number of Inputs | 4, 8 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V, ±5V |
| Voltage - Supply, Digital | 5V, ±5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| ROHS |  |
The LTC1290CIN#PBF is a versatile 12-bit analog-to-digital converter from Analog Devices, featuring 4 or 8 multiplexed input channels. It operates at a sampling rate of 50k SPS and uses an SPI interface for straightforward digital communication. The MUX-S/H architecture allows efficient sampling of multiple signals. Housed in a 20-DIP package, this ADC is perfect for data logging, industrial control, and embedded applications.
- Flexible Channel Configuration: Supports 4 or 8 channels, providing design flexibility for various applications.
- SPI Interface: Simplifies connection to microcontrollers and reduces pin count.
- Through-Hole Package: 20-DIP package is easy to solder and ideal for prototyping.
- Wide Temperature Range: -40°C to +85°C ensures reliable operation in industrial settings.
Multi-Sensor Data Logging
With 4 or 8 input channels, the LTC1290CIN#PBF is ideal for data logging systems that monitor multiple sensors, such as temperature, humidity, and pressure.
Industrial Process Control
In industrial environments, this ADC digitizes signals from various transducers, enabling precise control of manufacturing processes.
Embedded Systems
The SPI interface and DIP package make it easy to integrate into embedded systems for analog signal measurement.
Environmental Monitoring
For weather stations and environmental monitoring, the multi-channel capability allows simultaneous measurement of multiple environmental parameters.
Educational Labs
The through-hole DIP package is ideal for educational and prototyping purposes, allowing easy breadboard integration.
- Q: What is the LTC1290CIN#PBF?
- A: It is a 12-bit analog-to-digital converter with a multiplexed sample-and-hold (MUX-S/H) architecture.
- Q: What is the resolution?
- A: It provides 12-bit resolution, suitable for general-purpose measurement applications.
- Q: What is the sampling rate?
- A: The LTC1290CIN#PBF supports a sampling rate of 50k SPS.
- Q: How many channels does it have?
- A: It supports 4 or 8 input channels, configurable based on the application.
- Q: What interface does it use?
- A: It uses an SPI interface for easy connection to digital systems.
- Q: What is the package type?
- A: It is available in a 20-DIP (0.300", 7.62mm) package.
