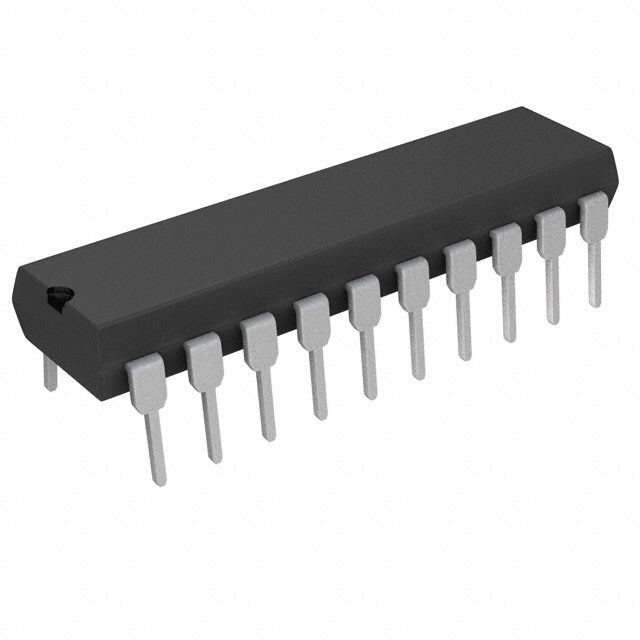

Analog Devices Inc. LTC1290DIN#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $47.23 | $47.23 |
| 15+ | $45.74 | $686.10 |
| 25+ | $44.75 | $1,118.75 |
| 50+ | $42.26 | $2,113.00 |
| 100+ | $37.29 | $3,729.00 |
| N+ | $7.46 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 50k |
| Number of Inputs | 4, 8 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V, ±5V |
| Voltage - Supply, Digital | 5V, ±5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| ROHS |  |
The LTC1290DIN#PBF is a versatile 12-bit analog-to-digital converter (ADC) from Analog Devices, featuring a multiplexed input for up to 8 channels. With a sampling rate of 50 kSPS and an SPI interface, it is designed for multi-sensor data acquisition and industrial control. The MUX-S/H architecture allows sequential sampling of multiple analog signals, making it a cost-effective solution for systems that need to monitor several inputs. Its 20-pin DIP package is easy to handle and integrate into through-hole PCB designs.
- Multiplexed Inputs: Supports up to 8 channels, reducing the need for multiple ADCs in multi-sensor systems.
- Simple SPI Interface: Easy to connect to microcontrollers, simplifying firmware development.
- Through-Hole Package: The DIP package is ideal for prototyping and educational use.
- Wide Temperature Range: Operates from -40°C to 85°C, suitable for industrial environments.
Multi-Sensor Data Logging
The 8-channel multiplexed input of the LTC1290DIN#PBF allows a single ADC to monitor multiple sensors, making it ideal for environmental monitoring and data logging systems.
Industrial Process Control
In industrial automation, this ADC can digitize signals from various transducers (temperature, pressure, level) sequentially, simplifying control system design.
Battery Management Systems
For monitoring battery packs, the multiple channels can measure individual cell voltages, ensuring safe and efficient operation.
Test and Measurement Equipment
The 12-bit resolution and 50 kSPS rate are suitable for many benchtop instruments, providing accurate readings for voltage, current, and resistance.
Building Automation
In HVAC and lighting control, the LTC1290DIN#PBF can interface with multiple sensors to optimize energy usage and comfort.
Robotics and Control
For robotic systems, the multiple channels can read various joint position and force sensors, enabling precise motion control.
- Q: What is the resolution of the LTC1290DIN#PBF?
- A: The LTC1290DIN#PBF is a 12-bit analog-to-digital converter (ADC).
- Q: What is the sampling rate of this ADC?
- A: It has a sampling rate of 50 kSPS (50,000 samples per second).
- Q: How many channels does the LTC1290DIN#PBF have?
- A: It can be configured with either 4 or 8 input channels.
- Q: What interface does the LTC1290DIN#PBF use?
- A: It uses a standard SPI serial interface.
- Q: What is the architecture of this ADC?
- A: It uses a multiplexed sample-and-hold (MUX-S/H-ADC) architecture.
- Q: What is the package type for the LTC1290DIN#PBF?
- A: It is available in a 20-pin DIP package.
