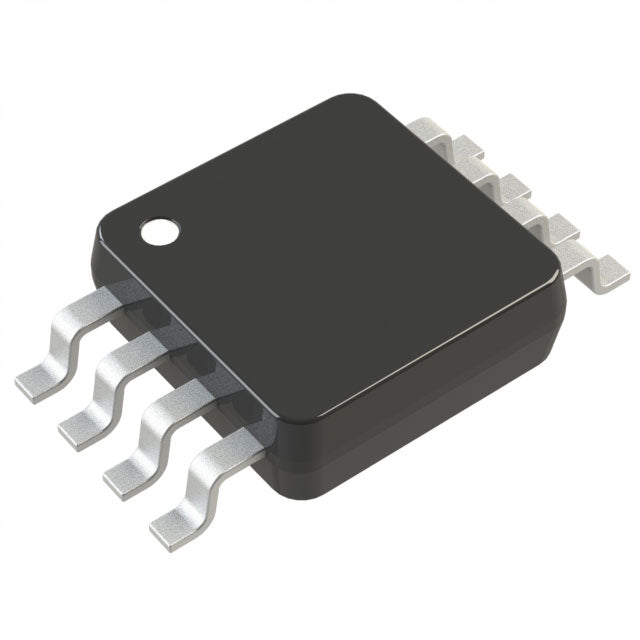

Analog Devices Inc. LTC1403ACMSE#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.62 | $19.62 |
| 15+ | $19.00 | $285.00 |
| 25+ | $18.59 | $464.75 |
| 50+ | $17.55 | $877.50 |
| 100+ | $15.49 | $1,549.00 |
| N+ | $3.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 2.8M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-MSOP-EP |
| ROHS |  |
The LTC1403ACMSE#PBF is a high-speed 14-bit ADC from Analog Devices, designed for applications requiring a balance of speed and precision. With a sampling rate of 2.8 MSPS and a single input channel, it delivers fast and accurate conversions. The SPI interface provides easy connectivity to digital systems. Packaged in a compact 10-MSOP with exposed pad, it is suitable for space-constrained designs. Operating from 0°C to 70°C, it is ideal for commercial and industrial instrumentation.
- High Speed & Resolution: 2.8 MSPS and 14-bit resolution offer a great balance for high-performance applications.
- Compact Size: 10-MSOP package with exposed pad saves board space and improves thermal performance.
- Flexible Reference: Supports both external and internal references for design flexibility.
- Easy Integration: SPI interface simplifies connection to microcontrollers and DSPs.
High-Speed Portable Instrumentation
The 2.8 MSPS sampling rate and 14-bit resolution make the LTC1403ACMSE#PBF ideal for portable instruments like handheld spectrum analyzers or high-speed data loggers where both speed and accuracy are needed.
Medical Ultrasound Systems
In ultrasound equipment, this ADC's high speed and resolution enable precise digitization of echo signals, contributing to better image quality and diagnostic capabilities.
Industrial Imaging
For machine vision and industrial imaging systems, the LTC1403A provides the necessary speed to capture fast-moving objects with high detail, improving quality control processes.
Communications Receivers
In IF sampling receivers, the 14-bit resolution and 2.8 MSPS rate allow for wide dynamic range and accurate signal digitization, enhancing receiver performance.
Data Acquisition Cards
This ADC is well-suited for high-speed data acquisition cards used in test and measurement, offering a balance of speed and precision for various signal analysis tasks.
- Q: What is the resolution of the LTC1403ACMSE#PBF?
- A: It is a 14-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It supports a sampling rate of 2.8 MSPS (2.8M samples per second).
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What interface does it use?
- A: It uses an SPI interface for data transfer.
- Q: What is the architecture?
- A: It uses a Sample-and-Hold (S/H-ADC) architecture.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C and comes in a 10-MSOP package with exposed pad.
