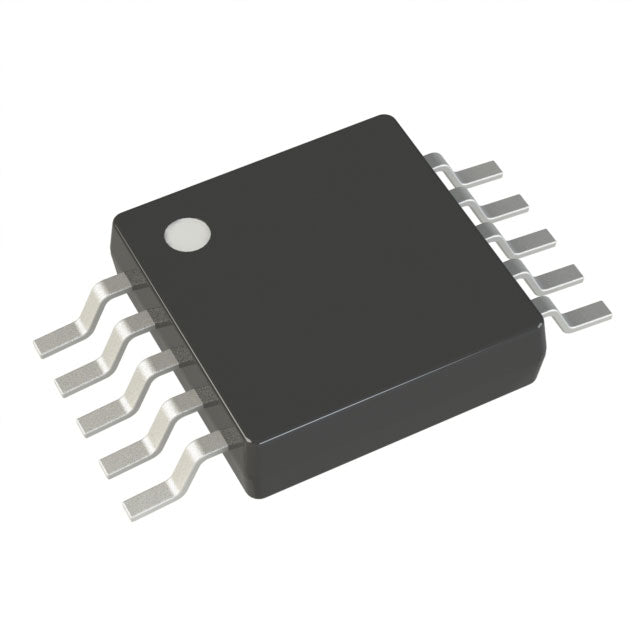

Analog Devices Inc. LTC1407ACMSE-1#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.62 | $19.62 |
| 15+ | $19.00 | $285.00 |
| 25+ | $18.59 | $464.75 |
| 50+ | $17.55 | $877.50 |
| 100+ | $15.49 | $1,549.00 |
| N+ | $3.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 3M |
| Number of Inputs | 2 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-MUX-ADC |
| Ratio - S/H:ADC | 2:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Features | Simultaneous Sampling |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-MSOP-EP |
| ROHS |  |
The LTC1407ACMSE-1#PBF is a high-speed 14-bit analog-to-digital converter from Analog Devices, capable of sampling at 3M SPS. It features 2 input channels and an SPI interface for easy digital integration. The S/H-MUX-ADC architecture ensures accurate sampling of fast signals. With external or internal reference options and a compact 10-MSOP package, this ADC is ideal for portable, high-performance applications in communications, medical, and industrial fields.
