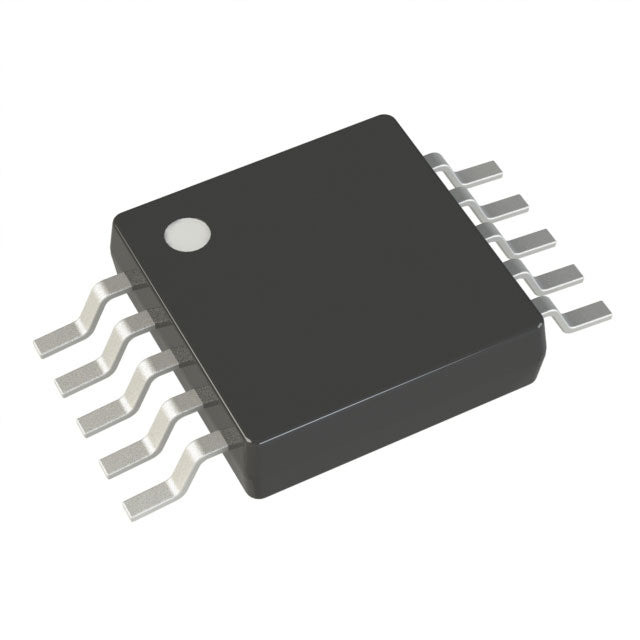

Analog Devices Inc. LTC1407AHMSE#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $25.13 | $25.13 |
| 15+ | $24.33 | $364.95 |
| 25+ | $23.81 | $595.25 |
| 50+ | $22.48 | $1,124.00 |
| 100+ | $19.84 | $1,984.00 |
| N+ | $3.97 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 3M |
| Number of Inputs | 2 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-MUX-ADC |
| Ratio - S/H:ADC | 2:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-MSOP-EP |
| ROHS |  |
The LTC1407AHMSE#PBF is a high-speed 14-bit, 3 MSPS dual-channel ADC from Analog Devices. It features a sample-and-hold with multiplexer architecture and a standard SPI interface. With an external or internal reference and an extended temperature range up to 125°C, this ADC is designed for demanding applications such as medical imaging, automotive radar, and high-speed industrial data acquisition.
- Very High Sampling Rate: 3 MSPS allows for digitization of fast-changing signals, essential for real-time systems.
- Dual-Channel Simultaneous Sampling: Perfect for applications requiring phase-matched measurements, like I/Q signals.
- Extended Temperature Range: Operates from -40°C to +125°C, suitable for automotive and industrial environments.
- Compact MSOP Package: Saves space while providing excellent thermal performance with exposed pad.
High-Speed Dual-Channel Data Acquisition
The 3 MSPS sampling rate and dual channels allow simultaneous sampling of two signals, ideal for I/Q demodulation in communication systems.
Advanced Industrial Automation
With a wide temperature range and fast conversion, it can handle multiple sensor inputs in high-speed industrial control loops.
Medical Ultrasound Equipment
The high speed and 14-bit resolution are critical for capturing detailed echo signals in ultrasound imaging systems.
Automotive Radar Systems
In automotive safety systems, this ADC can digitize multiple radar signals with high precision and speed for object detection.
Test and Measurement Instruments
The dual-channel capability and fast sampling make it suitable for spectrum analyzers and high-speed digitizers.
Power Electronics Control
In motor drives and power inverters, the ADC can monitor voltage and current simultaneously for efficient real-time control.
- Q: What is the resolution of the LTC1407AHMSE#PBF?
- A: It is a 14-bit ADC.
- Q: What is the sampling rate?
- A: The sampling rate is 3 MSPS.
- Q: How many channels does it have?
- A: It has 2 input channels.
- Q: What interface does it use?
- A: It uses a standard SPI interface.
- Q: What is the architecture?
- A: It uses a S/H-MUX-ADC (Sample and Hold with Multiplexer) architecture.
- Q: What package is available?
- A: It comes in a 10-MSOP Exposed Pad package.
