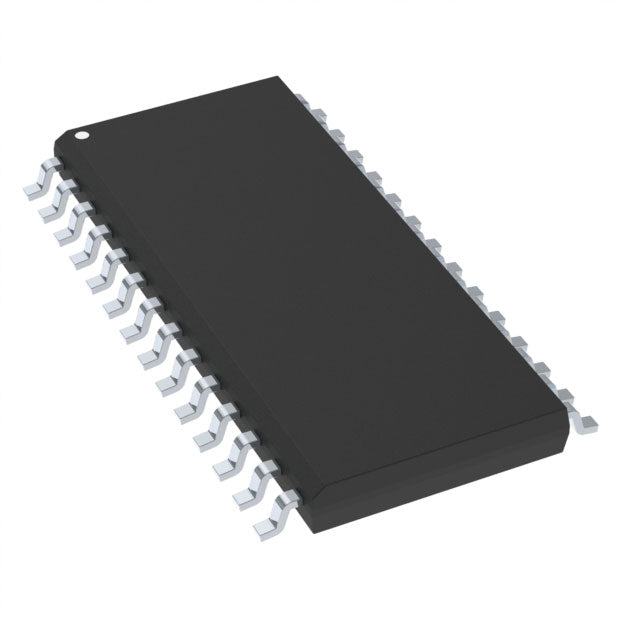

Analog Devices Inc. LTC1409CSW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $23.85 | $23.85 |
| 15+ | $23.10 | $346.50 |
| 25+ | $22.60 | $565.00 |
| 50+ | $21.34 | $1,067.00 |
| 100+ | $18.83 | $1,883.00 |
| N+ | $3.77 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 800k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| ROHS |  |
The LTC1409CSW#PBF is a high-speed 12-bit analog-to-digital converter from Analog Devices, featuring an impressive sampling rate of 800k SPS. It has a single input channel with a sample-and-hold architecture and offers a parallel interface for rapid data transfer. Packaged in a 28-SOIC, this ADC is designed for demanding applications such as high-speed data acquisition, DSP front-ends, and industrial automation.
- Very High Sampling Rate: The 800k SPS rate allows for digitizing fast-changing signals, making it ideal for real-time applications.
- Fast Parallel Output: The parallel interface ensures high-speed data transfer to the host processor, minimizing latency.
- Flexible Reference Options: Supports both external and internal references, providing design flexibility for different accuracy needs.
- Proven SOIC Package: The 28-SOIC package is widely used and easy to integrate into standard PCB designs.
High-Speed Data Acquisition Systems
The LTC1409CSW#PBF with its 800k SPS sampling rate is ideal for high-speed data acquisition systems, enabling fast and accurate digitization of dynamic signals.
Digital Signal Processing (DSP) Front-End
With a parallel interface and high throughput, this ADC is well-suited as a front-end for DSP applications, providing a continuous stream of digital data for processing.
Industrial Automation and Control
The 12-bit resolution and fast sampling rate make it suitable for industrial automation, where rapid and precise control loop feedback is required.
Medical Ultrasound Equipment
In medical ultrasound, the high sampling rate allows for capturing high-frequency signals, contributing to better image resolution and diagnostic capability.
Telecommunications Infrastructure
The LTC1409 can be used in telecommunications base stations for digitizing IF (intermediate frequency) signals, where high speed and linearity are critical.
- Q: What is the LTC1409CSW#PBF?
- A: It is a 12-bit analog-to-digital converter (ADC) with a sample-and-hold architecture.
- Q: What is the resolution of the LTC1409CSW#PBF?
- A: The resolution is 12 bits.
- Q: What is the sampling rate of the LTC1409CSW#PBF?
- A: The sampling rate is 800k SPS.
- Q: How many channels does the LTC1409CSW#PBF have?
- A: It has 1 input channel.
- Q: What interface does the LTC1409CSW#PBF use?
- A: It uses a Parallel interface.
- Q: What is the package type for the LTC1409CSW#PBF?
- A: It comes in a 28-SOIC package.
