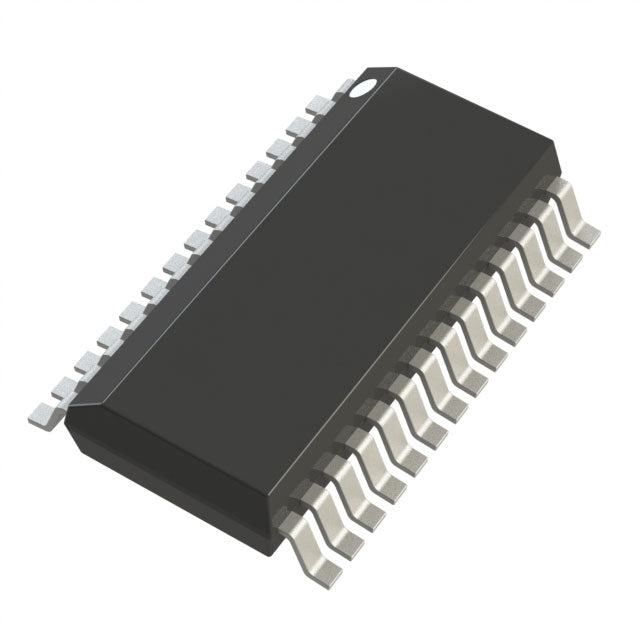

Analog Devices Inc. LTC1414CGN#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $38.71 | $38.71 |
| 15+ | $37.49 | $562.35 |
| 25+ | $36.68 | $917.00 |
| 50+ | $34.64 | $1,732.00 |
| 100+ | $30.56 | $3,056.00 |
| N+ | $6.11 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 2.2M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC1414CGN is a 14-bit analog-to-digital converter from Analog Devices with a sampling rate of 2.2M SPS. It features a single-channel S/H-ADC architecture and a parallel interface for straightforward digital connectivity. The device operates from 0°C to 70°C and is available in a 28-SSOP package. Designed for industrial data acquisition, process control, and medical instrumentation.
- Balanced Speed and Resolution: 2.2M SPS with 14-bit accuracy suits a wide range of mid-speed applications.
- Simple Parallel Interface: Easy integration with microcontrollers and DSPs without complex serial protocols.
- Compact SSOP Package: Saves board space in space-constrained designs.
- Proven Reliability: Analog Devices' robust design ensures consistent performance in industrial environments.
Industrial Data Acquisition
The 2.2M SPS sampling rate and 14-bit resolution provide a balance of speed and accuracy for industrial DAQ systems monitoring sensors and transducers.
Process Control Systems
Ideal for PLC analog input modules and distributed control systems (DCS) requiring reliable, parallel-interface ADCs for real-time process monitoring.
Medical Instrumentation
Suitable for patient monitoring devices and diagnostic equipment where moderate-speed, high-resolution conversion of biosignals is required.
Automotive Test Equipment
Used in engine test benches and battery test systems for accurate measurement of voltage and current with parallel data output for fast processing.
Portable Instrumentation
The SSOP package and 0°C to 70°C range make it suitable for portable lab instruments and handheld meters requiring compact, low-power ADCs.
Energy Management Systems
Enables precise digitization in smart grid meters and power quality analyzers, where parallel output simplifies interface to legacy DSPs.
- Q: What type of ADC is the LTC1414CGN?
- A: It is a 14-bit, single-channel, S/H-ADC (Sample-and-Hold Analog-to-Digital Converter).
- Q: What is the resolution of the LTC1414CGN?
- A: The resolution is 14 bits.
- Q: What is the sampling rate of the LTC1414CGN?
- A: The sampling rate is 2.2M SPS (2.2 million samples per second).
- Q: How many channels does the LTC1414CGN have?
- A: It has 1 input channel.
- Q: What interface does the LTC1414CGN support?
- A: It supports a Parallel interface.
- Q: What is the package type for the LTC1414CGN?
- A: It comes in a 28-SSOP package.
