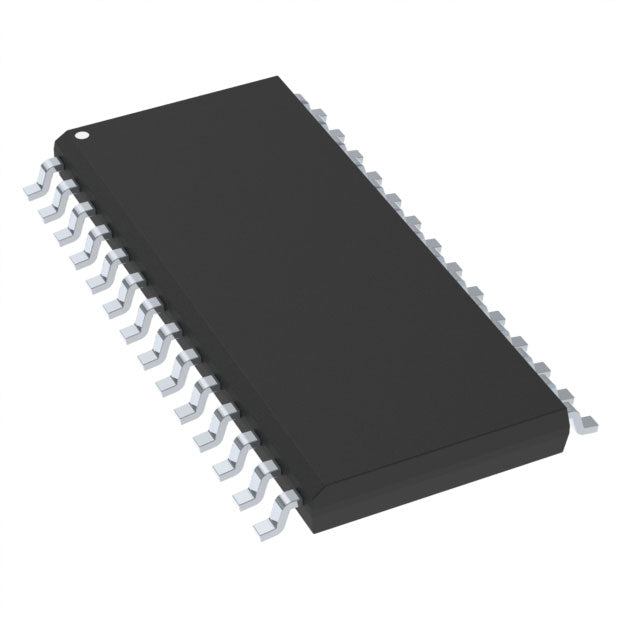

Analog Devices Inc. LTC1415CSW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $24.81 | $24.81 |
| 15+ | $24.03 | $360.45 |
| 25+ | $23.51 | $587.75 |
| 50+ | $22.20 | $1,110.00 |
| 100+ | $19.59 | $1,959.00 |
| N+ | $3.92 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1.25M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| ROHS |  |
The LTC1415CSW#PBF is a 12-bit analog-to-digital converter from Analog Devices, featuring a sampling rate of 1.25 MSPS. This single-channel ADC uses a parallel interface and S/H architecture to deliver accurate conversions. It operates within a temperature range of 0°C to 70°C and is housed in a 28-SOIC package. Designed for industrial control, data acquisition, and test equipment, it offers a reliable and efficient solution for precision measurement applications.
- Fast Conversion: 1.25 MSPS sampling rate supports real-time control applications.
- 12-Bit Precision: Ensures accurate digital representation of analog signals.
- Parallel Output: Simplifies high-speed data transfer to microcontrollers or DSPs.
- Standard SOIC Package: Easy to integrate into existing PCB designs.
- Proven Reliability: Analog Devices quality with a 0°C to 70°C operating range.
Industrial Process Control
The 1.25 MSPS sampling rate and 12-bit resolution make the LTC1415CSW#PBF suitable for industrial process control loops, where accurate and fast conversion of sensor signals (temperature, pressure) is required for closed-loop regulation.
Data Acquisition Systems
In portable or benchtop data loggers, this ADC provides a good balance of speed and precision, enabling the digitization of multiple analog signals with a multiplexed front-end.
Motor Control
For servo drives and motor controllers, the parallel interface allows quick transfer of current and position feedback data, supporting high-bandwidth control algorithms.
Test and Measurement Equipment
The LTC1415CSW#PBF is well-suited for digital multimeters and precision measurement instruments, offering reliable conversion over the 0°C to 70°C temperature range.
Battery-Powered Devices
With its moderate speed and low power consumption, it can be used in battery-operated monitoring devices, ensuring long operational life without sacrificing performance.
- Q: What is the resolution of the LTC1415CSW#PBF?
- A: The LTC1415CSW#PBF is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It offers a sampling rate of 1.25 MSPS (1.25M samples per second).
- Q: How many channels does it have?
- A: This ADC has a single (1) input channel.
- Q: What interface does it use?
- A: It features a parallel data output interface.
- Q: What is the architecture?
- A: It uses a sample-and-hold (S/H) ADC architecture.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C and comes in a 28-SOIC package.
