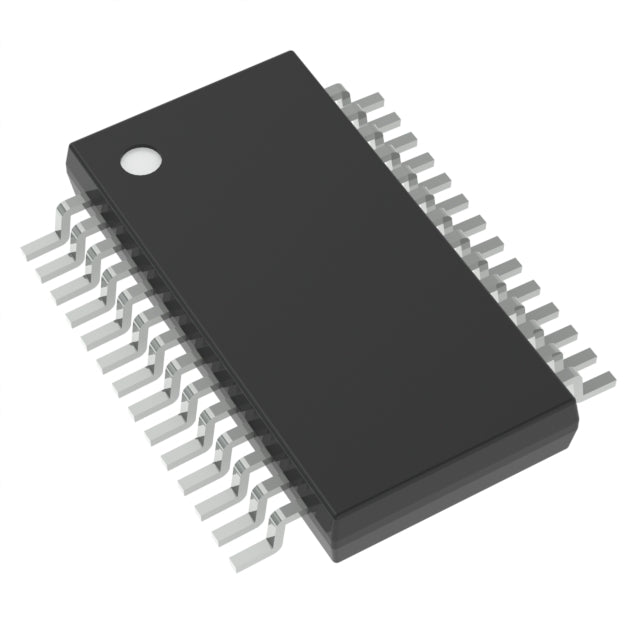

Analog Devices Inc. LTC1416CG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $20.16 | $20.16 |
| 15+ | $19.52 | $292.80 |
| 25+ | $19.10 | $477.50 |
| 50+ | $18.04 | $902.00 |
| 100+ | $15.92 | $1,592.00 |
| N+ | $3.18 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 400k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC1416CG#PBF is a 14-bit analog-to-digital converter (ADC) from Analog Devices Inc. It offers a sampling rate of 400 kSPS and features a parallel interface for high-speed data transfer to microprocessors or DSPs. This single-channel device utilizes a sample-and-hold architecture, ensuring accurate conversion of analog signals. Housed in a 28-SSOP package, it is designed for applications requiring high resolution and fast, efficient data communication, such as industrial control, medical instrumentation, and data acquisition systems.
- High Resolution: 14-bit resolution provides excellent accuracy and dynamic range for precise measurements.
- Fast Parallel Interface: The parallel output allows for high-speed data transfer, ideal for DSP and FPGA integration.
- Reliable Performance: The S/H architecture ensures accurate sampling of the analog input signal.
- Robust Package: The 28-SSOP package is suitable for a wide range of industrial and commercial applications.
High-Resolution Data Acquisition
The LTC1416CG#PBF's 14-bit resolution and 400 kSPS sampling rate make it ideal for high-accuracy data acquisition systems, such as those used in scientific instrumentation and precision industrial measurement.
Digital Signal Processing Front-Ends
The parallel interface allows for high-speed data transfer to DSPs or FPGAs, making this ADC suitable for digital signal processing applications like vibration analysis and audio processing.
Industrial Process Control
With its 14-bit resolution, this ADC provides the precision required for demanding industrial process control loops, ensuring accurate monitoring and control of critical parameters.
Medical Imaging Systems
In medical imaging equipment, the combination of high resolution and speed supports the digitization of sensor signals with the fidelity needed for accurate diagnostics.
Automated Test Equipment (ATE)
The LTC1416CG#PBF is well-suited for ATE applications where multiple channels need to be measured accurately and quickly, thanks to its parallel interface and fast sampling rate.
Communication Infrastructure
This ADC can be used in communication systems for digitizing baseband signals, where its resolution and speed help maintain signal integrity in demanding environments.
- Q: What is the resolution of the LTC1416CG#PBF?
- A: The LTC1416CG#PBF is a 14-bit analog-to-digital converter (ADC).
- Q: What is the sampling rate of this ADC?
- A: It has a sampling rate of 400 kSPS (400,000 samples per second).
- Q: How many input channels does the LTC1416CG#PBF have?
- A: This device features a single input channel (1 channel).
- Q: What digital interface does this ADC use?
- A: It uses a parallel interface for high-speed data transfer.
- Q: What is the architecture of the LTC1416CG#PBF?
- A: It uses a sample-and-hold (S/H) ADC architecture.
- Q: What is the package type for this part?
- A: It is available in a 28-SSOP (0.209", 5.30mm Width) package.
