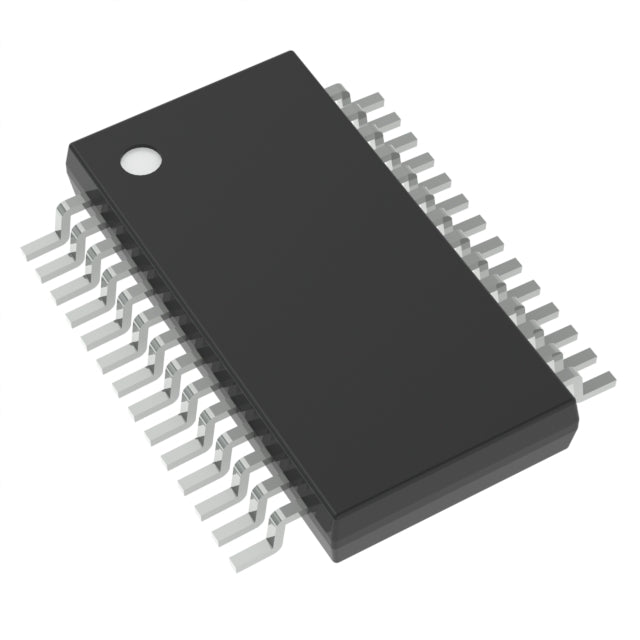

Analog Devices Inc. LTC1416IG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $21.26 | $21.26 |
| 15+ | $20.59 | $308.85 |
| 25+ | $20.14 | $503.50 |
| 50+ | $19.02 | $951.00 |
| 100+ | $16.79 | $1,679.00 |
| N+ | $3.36 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 400k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC1416IG#PBF from Analog Devices is a 14-bit, single-channel analog-to-digital converter featuring a high-speed parallel interface. It achieves a sampling rate of 400 kSPS, making it suitable for applications requiring fast and accurate data conversion. The device uses a sample-and-hold architecture and supports both external and internal voltage references for design flexibility. Its 28-SSOP package is compact and suitable for space-constrained designs. This ADC is an excellent choice for industrial control, telecommunications, and test and measurement equipment.
- Fast Parallel Output: The parallel interface enables high-speed data transfer to microprocessors and DSPs, ideal for real-time systems.
- Good Resolution: 14-bit resolution provides a good balance between accuracy and cost for many industrial applications.
- Reference Flexibility: The option to use an internal or external reference allows designers to optimize for accuracy or simplify the circuit.
- Proven Reliability: Analog Devices' reputation for high-quality converters ensures dependable performance in critical systems.
High-Speed Industrial Control
The parallel interface and 400 kSPS sampling rate make the LTC1416IG#PBF suitable for high-speed industrial control loops where fast data transfer is critical.
Telecommunications Infrastructure
In base stations and communication systems, this ADC can digitize intermediate frequency (IF) signals with good accuracy and speed.
Test and Measurement Equipment
Its 14-bit resolution and parallel output are ideal for benchtop instruments like digital multimeters and oscilloscopes that require fast and accurate readings.
Medical Imaging Systems
The high-speed conversion capability supports applications like ultrasound and CT scanners, where rapid data acquisition is necessary for image reconstruction.
Data Acquisition Cards
For PC-based data acquisition cards, the parallel interface simplifies connection to the system bus, enabling high-throughput data logging.
- Q: What is the resolution of the LTC1416IG#PBF?
- A: This ADC has a resolution of 14 bits.
- Q: What is its sampling rate?
- A: The LTC1416IG#PBF supports a maximum sampling rate of 400 kSPS.
- Q: How many input channels does it have?
- A: It has a single (1) input channel.
- Q: What digital interface does it use?
- A: It features a parallel interface for high-speed data transfer.
- Q: What is the architecture of this ADC?
- A: It uses a Sample and Hold (S/H) ADC architecture.
- Q: What is the package type?
- A: It comes in a 28-SSOP package.
