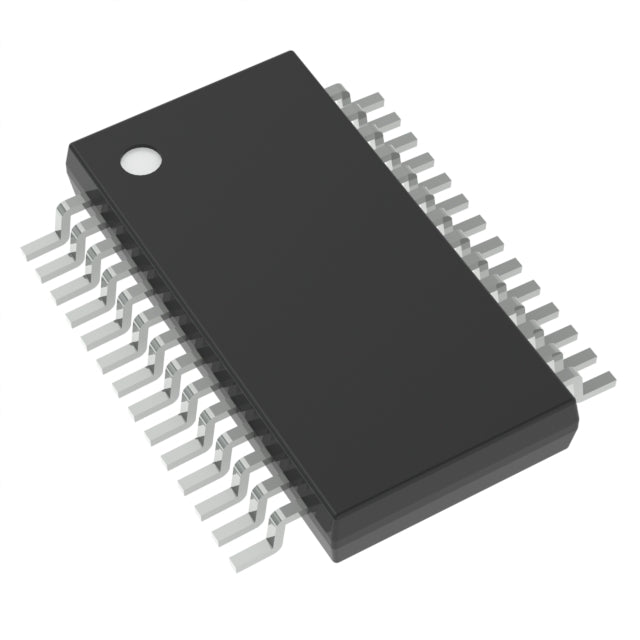

Analog Devices Inc. LTC1418IG#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.83 | $13.83 |
| 15+ | $13.40 | $201.00 |
| 25+ | $13.10 | $327.50 |
| 50+ | $12.38 | $619.00 |
| 100+ | $10.92 | $1,092.00 |
| N+ | $2.18 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 200k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V, 5V |
| Voltage - Supply, Digital | ±5V, 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The Analog Devices LTC1418IG#TRPBF is a 14-bit analog-to-digital converter offering a balanced combination of speed and precision. With a sampling rate of 200k SPS and a single input channel, it is well-suited for industrial and medical applications. The device features a sample-and-hold architecture and supports both external and internal references for design flexibility. Its 28-SSOP package and wide temperature range ensure reliable performance in demanding environments.
- Good Resolution: 14-bit accuracy for reliable measurements.
- Moderate Speed: 200k SPS handles most industrial signals.
- Flexible Reference: Supports external or internal reference for design versatility.
- Robust Package: 28-SSOP for easy PCB mounting.
- Wide Temperature Range: Operates from -40°C to 85°C.
Industrial Data Logging
The 14-bit resolution and 200k SPS sampling rate make the LTC1418IG#TRPBF ideal for logging industrial sensor data with good accuracy.
Process Control Systems
With both external and internal reference options, it offers flexibility in precision control loops for manufacturing.
Portable Medical Devices
Low power consumption and SPI interface make it suitable for battery-operated health monitors and diagnostic tools.
Automotive Sensor Interfaces
The wide temperature range (-40°C to 85°C) ensures reliable operation in automotive engine and chassis systems.
Energy Management
Used in power monitoring equipment to digitize voltage and current with sufficient precision for efficiency analysis.
- Q: What is the resolution of the LTC1418IG#TRPBF?
- A: This ADC has a resolution of 14 bits.
- Q: What is the sampling rate?
- A: It has a sampling rate of 200k SPS.
- Q: How many channels does it have?
- A: It features a single (1) input channel.
- Q: What interface does it use?
- A: It uses a SPI interface for data transfer.
- Q: What is the architecture?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What package is it available in?
- A: It comes in a 28-SSOP package.
