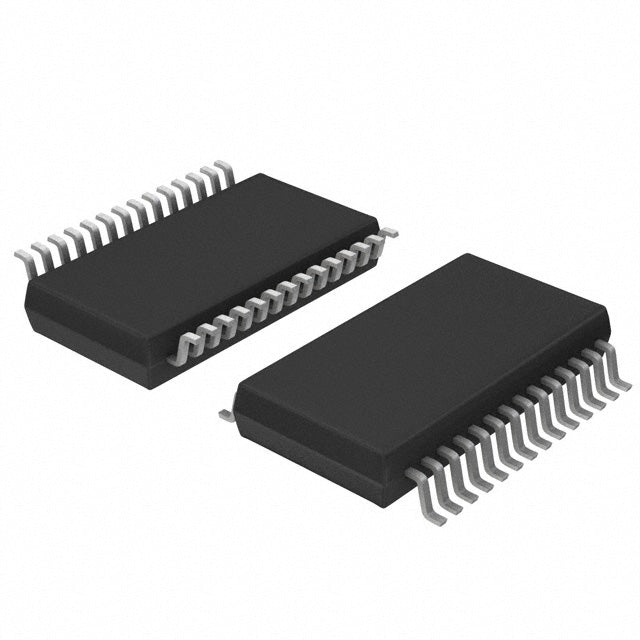

Analog Devices Inc. LTC1419AIG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $63.03 | $63.03 |
| 15+ | $61.04 | $915.60 |
| 25+ | $59.72 | $1,493.00 |
| 50+ | $56.40 | $2,820.00 |
| 100+ | $49.76 | $4,976.00 |
| N+ | $9.95 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 800k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC1419AIG#PBF is a 14-bit, single-channel ADC from Analog Devices, offering a superior combination of speed and precision. With a sampling rate of 800k SPS, it is well-suited for high-performance data acquisition and industrial control. The parallel interface ensures straightforward integration. Operating from -40°C to 85°C, it is packaged in a compact 28-SSOP, making it a reliable choice for precision applications.
- 14-Bit High Resolution: Offers superior accuracy for demanding measurement applications.
- Fast 800k SPS Sampling: Enables high-speed data capture without sacrificing precision.
- Wide Operating Temperature: -40°C to 85°C range ensures performance in extreme conditions.
- Compact SSOP Package: Saves board space while providing robust performance.
High-Precision Instrumentation
The 14-bit resolution of the LTC1419AIG#PBF makes it ideal for precision measurement instruments like digital multimeters and precision scales.
Industrial Process Control
In industrial automation, this ADC provides the accuracy needed for precise control of manufacturing processes.
Medical Monitoring Devices
Its high resolution is suitable for medical devices requiring accurate signal acquisition, such as ECG and EEG monitors.
Data Acquisition Systems
With 800k SPS, it balances speed and precision for general-purpose data acquisition in test and measurement.
Seismic and Vibration Analysis
The high resolution and speed allow for detailed analysis of vibration signals in structural health monitoring.
- Q: What is the LTC1419AIG#PBF?
- A: It is a 14-bit analog-to-digital converter (ADC) with a sample-and-hold (S/H) architecture.
- Q: What is the resolution of the LTC1419AIG#PBF?
- A: It offers 14-bit resolution, providing 16384 discrete levels for high-precision measurements.
- Q: What is the sampling rate?
- A: The LTC1419AIG#PBF has a maximum sampling rate of 800k SPS.
- Q: How many channels does it have?
- A: It features a single (1) analog input channel.
- Q: What interface does it use?
- A: It uses a parallel digital interface.
- Q: What is the package type?
- A: It is available in a 28-SSOP (0.209", 5.30mm Width) package.
