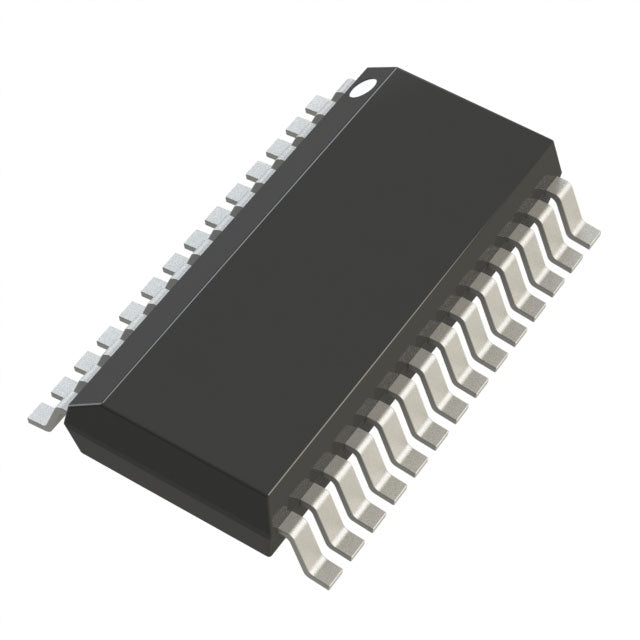

Analog Devices Inc. LTC1420CGN#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.93 | $17.93 |
| 15+ | $17.36 | $260.40 |
| 25+ | $16.98 | $424.50 |
| 50+ | $16.04 | $802.00 |
| 100+ | $14.15 | $1,415.00 |
| N+ | $2.83 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 10M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±4.75V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | PGA |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The Analog Devices LTC1420CGN#PBF is a high-speed 12-bit analog-to-digital converter featuring a maximum sampling rate of 10 MSPS. It includes a single input channel and utilizes a sample-and-hold architecture for accurate signal capture. The device supports both external and internal references, offering design flexibility. It operates from 0°C to 70°C and is available in a compact 28-SSOP package, ideal for space-constrained, high-performance applications.
- High-Speed Performance: The 10 MSPS sampling rate enables digitization of fast signals, making it suitable for demanding applications.
- Flexible Reference: Support for both external and internal references provides design versatility and optimization.
- Compact Package: The 28-SSOP package saves board space without compromising performance.
- Proven Architecture: The S/H-ADC architecture ensures reliable and accurate sampling of high-frequency inputs.
High-Speed Data Acquisition
With a 10 MSPS sampling rate and 12-bit resolution, the LTC1420CGN#PBF is perfect for high-speed data acquisition systems in test and measurement equipment.
Digital Oscilloscopes
The fast sampling and parallel output enable real-time digitization of high-frequency waveforms for digital storage oscilloscopes.
Medical Imaging
Its speed and accuracy make it suitable for ultrasound and other medical imaging systems that require rapid signal conversion.
Communications Receivers
The ADC can digitize intermediate frequency (IF) signals in software-defined radio and communication receivers.
Industrial Automation
Used in high-speed industrial control loops and motor control feedback systems where fast, accurate conversion is essential.
Spectrum Analysis
The high dynamic performance supports spectrum analyzers and other frequency-domain measurement instruments.
- Q: What is the LTC1420CGN#PBF?
- A: It is a 12-bit sampling analog-to-digital converter (ADC) from Analog Devices with a parallel interface.
- Q: What is the sampling rate of this ADC?
- A: The LTC1420CGN#PBF has a maximum sampling rate of 10 MSPS (10M samples per second).
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What architecture does it use?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What reference options are available?
- A: It supports both external and internal references.
- Q: What is the package type?
- A: It comes in a 28-SSOP package.
