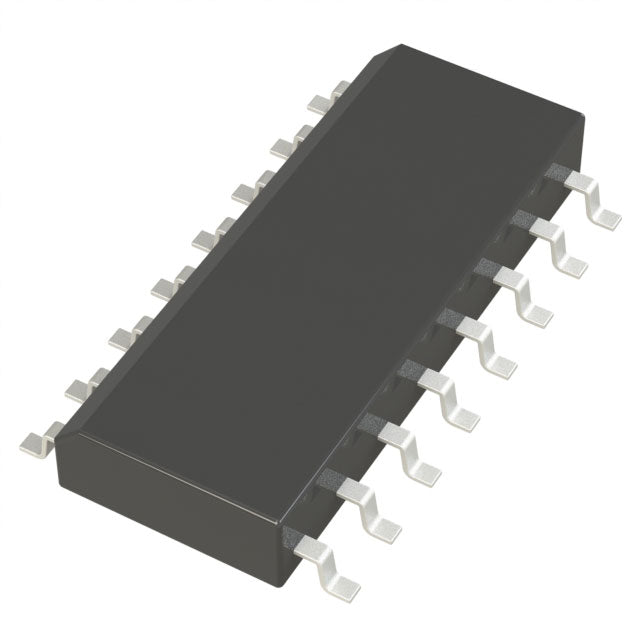

Analog Devices Inc. LTC1594IS#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.93 | $17.93 |
| 15+ | $17.36 | $260.40 |
| 25+ | $16.98 | $424.50 |
| 50+ | $16.04 | $802.00 |
| 100+ | $14.15 | $1,415.00 |
| N+ | $2.83 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | microPOWER™ |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 16.8k |
| Number of Inputs | 4 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO |
| ROHS |  |
The LTC1594IS#PBF from Analog Devices is a 12-bit, low-power analog-to-digital converter featuring a MUX-S/H-ADC architecture. It offers a sampling rate of 16.8k SPS and supports 4 multiplexed input channels. With a SPI interface and external reference, this ADC is designed for battery-powered, industrial, and automotive applications. The device is available in a 16-SOIC package and operates over a -40°C to 85°C temperature range, ensuring reliable performance in demanding environments.
- 12-bit resolution delivers accurate conversion for industrial and portable applications.
- 16.8k SPS sampling rate provides sufficient speed for real-time monitoring.
- 4-channel multiplexing reduces external components and simplifies multi-sensor designs.
- Low power consumption extends battery life in portable and remote applications.
Battery-Powered Data Logging
The LTC1594IS#PBF's low power consumption and 12-bit resolution make it ideal for battery-powered data loggers in environmental monitoring and remote sensing applications, extending battery life.
Multi-Channel Industrial Sensing
With 4 input channels and a SPI interface, this ADC is perfect for multi-channel industrial sensing applications, including temperature and pressure monitoring in process control systems.
Portable Medical Devices
The compact 16-SOIC package and low power operation make the LTC1594IS#PBF suitable for portable medical devices such as glucose meters and pulse oximeters, operating over a -40°C to 85°C temperature range.
Automotive Sensor Monitoring
The device's wide temperature range and 16.8k SPS sampling rate support automotive sensor monitoring for engine control and safety systems, providing reliable conversion in harsh conditions.
Precision Instrumentation
The 12-bit resolution and sample-and-hold architecture ensure accurate measurement in precision instrumentation, including digital multimeters and panel meters.
- Q: What is the LTC1594IS#PBF ADC type?
- A: The LTC1594IS#PBF is a 12-bit, low-power analog-to-digital converter with a MUX-S/H-ADC architecture.
- Q: What is the resolution of the LTC1594IS#PBF?
- A: The LTC1594IS#PBF provides 12-bit resolution.
- Q: What is the sampling rate of the LTC1594IS#PBF?
- A: The LTC1594IS#PBF has a sampling rate of 16.8k SPS.
- Q: How many channels does the LTC1594IS#PBF have?
- A: The LTC1594IS#PBF has 4 input channels.
- Q: What interface does the LTC1594IS#PBF use?
- A: The LTC1594IS#PBF uses a SPI serial interface.
- Q: What is the package type of the LTC1594IS#PBF?
- A: The LTC1594IS#PBF comes in a 16-SOIC (0.154", 3.90mm Width) package.
