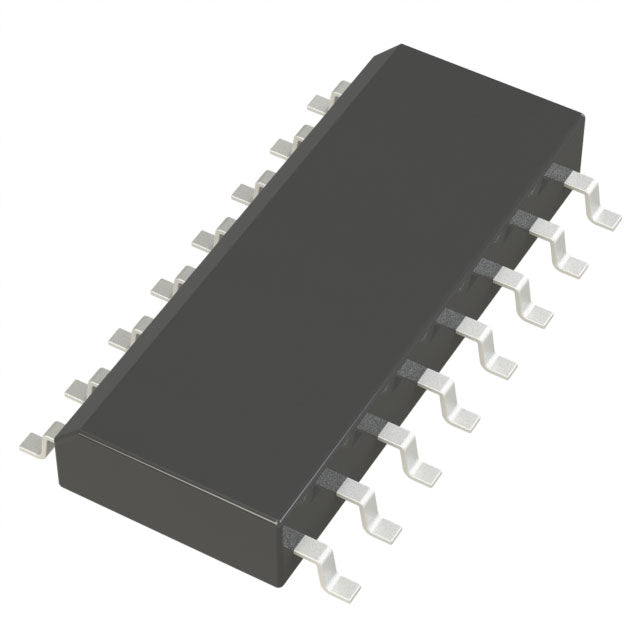

Analog Devices Inc. LTC1594LIS#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.93 | $17.93 |
| 15+ | $17.36 | $260.40 |
| 25+ | $16.98 | $424.50 |
| 50+ | $16.04 | $802.00 |
| 100+ | $14.15 | $1,415.00 |
| N+ | $2.83 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | microPOWER™ |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 16.8k |
| Number of Inputs | 4 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO |
| ROHS |  |
The LTC1594LIS from Analog Devices is a 12-bit, 16.8 kSPS analog-to-digital converter with 4 multiplexed input channels. It uses a sample-and-hold architecture and requires an external reference. The device communicates via SPI and operates over a -40°C to 85°C range. Housed in a 16-SOIC package, this ADC is designed for low-power, multi-channel sensing applications such as portable instrumentation, industrial process control, and medical monitoring.
- Multi-Channel Input: 4 channels reduce the need for external multiplexers.
- Low Power Consumption: Ideal for battery-operated devices.
- Compact SOIC Package: Saves board space in dense designs.
- Wide Temperature Range: Suitable for industrial environments.
- Simple SPI Interface: Easy integration with digital systems.
Multi-Sensor Data Acquisition
The 4 input channels allow the LTC1594LIS to monitor multiple sensors simultaneously, making it ideal for data acquisition systems in industrial monitoring and environmental sensing.
Battery-Powered Instruments
With a low sampling rate of 16.8 kSPS and 12-bit resolution, this ADC is optimized for low-power applications like portable data loggers and handheld meters.
Process Control Systems
The multiplexed inputs enable monitoring of multiple process variables (temperature, pressure, flow) in industrial automation, reducing component count.
Medical Monitoring Devices
This ADC can be used in patient monitoring equipment to digitize signals from multiple physiological sensors, providing reliable data for healthcare professionals.
Smart Building Automation
In HVAC and lighting control systems, the 4-channel ADC can interface with various sensors to optimize energy efficiency and comfort.
- Q: What is the resolution of the LTC1594LIS?
- A: This ADC provides 12-bit resolution.
- Q: What is the sampling rate?
- A: The sampling rate is 16.8k samples per second (16.8 kSPS).
- Q: How many channels does it have?
- A: It has 4 input channels.
- Q: What interface does it use?
- A: It uses a serial peripheral interface (SPI).
- Q: What is the architecture?
- A: It uses a multiplexed sample-and-hold (MUX-S/H) architecture.
- Q: What is the package type?
- A: It comes in a 16-SOIC package.
