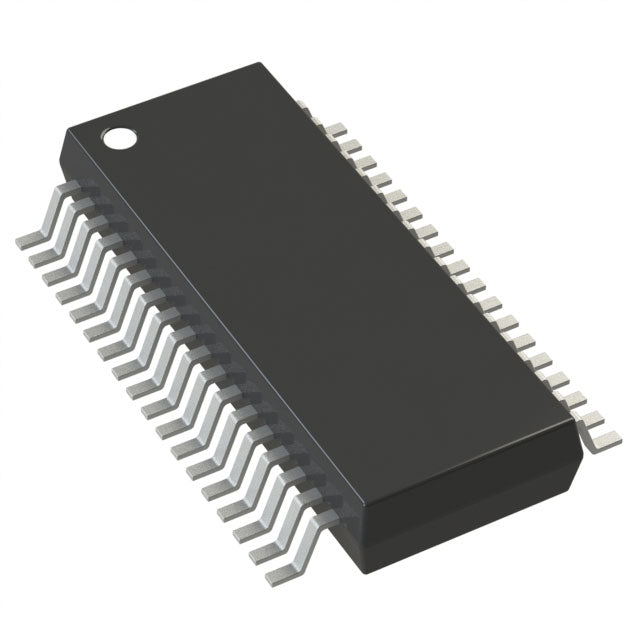

Analog Devices Inc. LTC1603IG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $22.22 | $22.22 |
| 15+ | $21.52 | $322.80 |
| 25+ | $21.05 | $526.25 |
| 50+ | $19.88 | $994.00 |
| 100+ | $17.54 | $1,754.00 |
| N+ | $3.51 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 36-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 36-SSOP |
| ROHS |  |
The LTC1603IG#PBF is a 16-bit, single-channel analog-to-digital converter from Analog Devices, offering a sampling rate of 250 kSPS. Its S/H architecture ensures accurate sampling of fast-changing signals. The parallel interface provides high-speed data transfer to host processors. With support for external and internal references, it offers design flexibility. Operating from -40°C to 85°C, it is packaged in a 36-SSOP, making it suitable for precision instrumentation, medical devices, and industrial control systems.
- 16-Bit Resolution: Delivers high precision for demanding measurement applications.
- 250 kSPS Sampling Rate: Balances speed and accuracy for real-time signal processing.
- Parallel Interface: Enables fast data transfer to microcontrollers and DSPs.
- Flexible Reference: Internal or external reference options for design optimization.
- Wide Temperature Range: -40°C to 85°C for reliable operation in various environments.
High-Precision Data Acquisition
16-bit resolution and 250 kSPS sampling rate make it ideal for high-accuracy data acquisition in laboratory and industrial settings.
Medical Instrumentation
Precision and speed are critical for medical imaging and diagnostic equipment, such as digital X-ray and ultrasound systems.
Seismic Monitoring
The high resolution allows detection of very small seismic signals, making it suitable for geophysical exploration and earthquake monitoring.
Audio Processing
16-bit resolution and fast sampling support high-quality audio digitization for professional audio equipment.
Industrial Automation
Accurate conversion of analog control signals in servo drives and robotic systems improves precision and responsiveness.
Scientific Instruments
Used in spectrometers, chromatographs, and other analytical instruments requiring high-resolution signal digitization.
- Q: What type of ADC is the LTC1603IG#PBF?
- A: It is a 16-bit, single-channel sample-and-hold analog-to-digital converter (S/H-ADC) with parallel interface.
- Q: What is the resolution?
- A: The resolution is 16 bits.
- Q: What is the sampling rate?
- A: The sampling rate is 250 kSPS (250k samples per second).
- Q: How many channels does it have?
- A: It has 1 input channel.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
- Q: What package is available?
- A: It comes in a 36-SSOP package (0.209", 5.30mm width).
