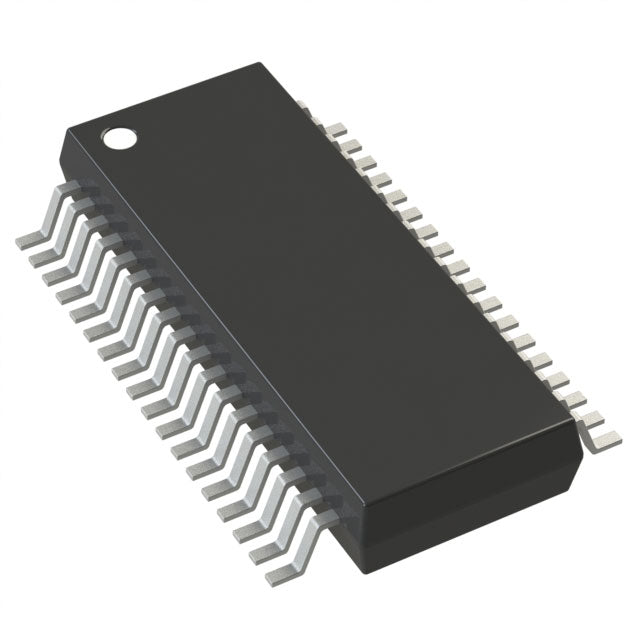

Analog Devices Inc. LTC1604IG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $48.13 | $48.13 |
| 15+ | $46.61 | $699.15 |
| 25+ | $45.59 | $1,139.75 |
| 50+ | $43.06 | $2,153.00 |
| 100+ | $38.00 | $3,800.00 |
| N+ | $7.60 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 333k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 36-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 36-SSOP |
| ROHS |  |
The LTC1604IG#PBF is a 16-bit, 333k SPS analog-to-digital converter from Analog Devices, designed for high-performance data acquisition. This single-channel ADC features a sample-and-hold (S/H) front-end and a parallel output interface, enabling fast and efficient communication with digital systems. It supports both external and internal voltage references, offering flexibility in system design. Housed in a 36-SSOP package, the LTC1604IG#PBF operates over a -40°C to 85°C temperature range, making it suitable for industrial, medical, and telecommunications applications that require a balance of speed and precision.
- High-Speed Performance: The 333k SPS sampling rate enables the digitization of fast-changing signals, making it suitable for real-time applications.
- Parallel Interface: The parallel output allows for high-throughput data transfer, simplifying connection to DSPs and FPGAs.
- Flexible Reference: Support for both external and internal references provides design flexibility to optimize for accuracy or cost.
- Industrial Grade: Rated for -40°C to 85°C, it is built to withstand harsh industrial environments.
- Compact Package: The 36-SSOP package saves valuable board space in dense system designs.
High-Speed Data Acquisition Systems
With a 333k SPS sampling rate and 16-bit resolution, the LTC1604IG#PBF is ideal for data acquisition cards used in test and measurement equipment, capturing dynamic signals with high fidelity.
Industrial Process Control
The parallel interface allows for fast, deterministic data transfer in industrial control loops, making it suitable for real-time monitoring and control of motors, drives, and power systems.
Medical Imaging and Instrumentation
In medical devices like ultrasound machines and patient monitors, the high resolution and speed of this ADC ensure accurate digitization of analog signals for diagnostic purposes.
Telecommunications Infrastructure
The LTC1604IG#PBF can be used in base stations and communication systems for digitizing IF (Intermediate Frequency) signals, where high dynamic range and speed are required.
Vibration and Acoustics Analysis
For applications involving vibration monitoring or acoustic analysis, the 16-bit resolution and 333k SPS rate provide the necessary performance to capture a wide frequency range with good detail.
Automotive Test Systems
In automotive R&D, this ADC is used in dynamometers and engine test benches to accurately measure parameters like torque, pressure, and temperature with high-speed parallel data output.
- Q: What is the LTC1604IG#PBF?
- A: It is a 16-bit, single-channel Analog-to-Digital Converter (ADC) from Analog Devices with a S/H-ADC architecture.
- Q: What is the resolution of the LTC1604IG#PBF?
- A: The LTC1604IG#PBF offers 16-bit resolution, providing high accuracy for data acquisition systems.
- Q: What is the maximum sampling rate?
- A: It supports a sampling rate of 333k SPS (samples per second), suitable for moderate-speed applications.
- Q: How many analog input channels does it have?
- A: It has 1 input channel, making it a single-channel ADC.
- Q: What interface does the LTC1604IG#PBF use?
- A: It uses a parallel interface for high-speed data transfer to the host processor.
- Q: What is the package and temperature range?
- A: It comes in a 36-SSOP package and operates over an industrial temperature range of -40°C to 85°C.
