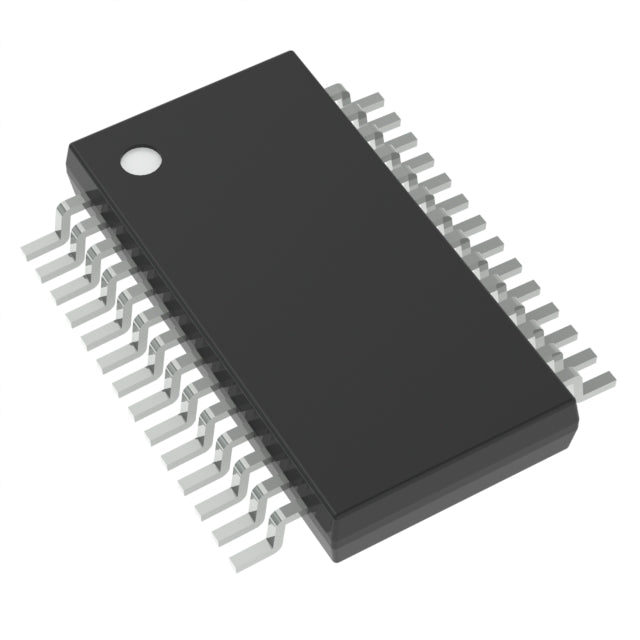

Analog Devices Inc. LTC1605CG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $41.37 | $41.37 |
| 15+ | $40.07 | $601.05 |
| 25+ | $39.20 | $980.00 |
| 50+ | $37.02 | $1,851.00 |
| 100+ | $32.66 | $3,266.00 |
| N+ | $6.53 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC1605CG#PBF is a high-performance 16-bit analog-to-digital converter from Analog Devices, offering a sampling rate of 100k SPS. This single-channel device features a successive approximation (S/H-ADC) architecture and a parallel interface for efficient data transfer. It supports both external and internal voltage references, providing design flexibility. Housed in a compact 28-SSOP package, it is suitable for precision industrial, medical, and instrumentation applications requiring accurate signal digitization.
- High Resolution: 16-bit resolution provides exceptional accuracy for demanding measurement applications, ensuring minimal quantization error.
- Fast Sampling Rate: 100k SPS throughput enables real-time processing of dynamic signals, making it suitable for high-speed control systems.
- Flexible Reference Options: Support for both external and internal references allows designers to optimize for accuracy or simplicity.
- Parallel Interface: High-speed parallel output simplifies connection to microcontrollers and DSPs, reducing software overhead.
Precision Sensor Digitization
The 16-bit resolution and 100k SPS sampling rate make the LTC1605CG#PBF ideal for digitizing precision sensors like strain gauges and load cells, ensuring high-fidelity signal capture for accurate weight and force measurements.
Industrial Data Acquisition Systems
With its parallel interface and 100k SPS throughput, this ADC is well-suited for multi-channel industrial data acquisition systems where high-speed, synchronized data transfer to an FPGA or DSP is required.
Medical Instrumentation
The high resolution and 0°C to 70°C temperature range support use in medical devices such as patient monitoring systems and diagnostic equipment, where accurate and reliable analog-to-digital conversion is critical.
Automotive Sensor Interfaces
Although specified for 0°C to 70°C, the LTC1605CG#PBF can be used in automotive test and measurement applications, converting signals from temperature and pressure sensors with high precision for engine control unit validation.
Portable Instrumentation
The low power consumption typical of SAR ADCs, combined with the compact 28-SSOP package, makes this converter suitable for portable battery-powered instruments requiring high-resolution measurement capabilities.
Process Control Loops
In industrial process control, the LTC1605CG#PBF can digitize 4-20 mA loop signals with high accuracy, enabling precise control of valves and actuators in automated manufacturing environments.
- Q: What type of ADC is the LTC1605CG#PBF?
- A: It is a 16-bit successive approximation (S/H-ADC) analog-to-digital converter.
- Q: What is the resolution of the LTC1605CG#PBF?
- A: The resolution is 16 bits.
- Q: What is the sampling rate of the LTC1605CG#PBF?
- A: The sampling rate is 100k SPS (samples per second).
- Q: How many channels does the LTC1605CG#PBF have?
- A: It has 1 input channel.
- Q: What interface does the LTC1605CG#PBF use?
- A: It uses a Parallel interface.
- Q: What is the package type for the LTC1605CG#PBF?
- A: It comes in a 28-SSOP package (0.209", 5.30mm Width).
