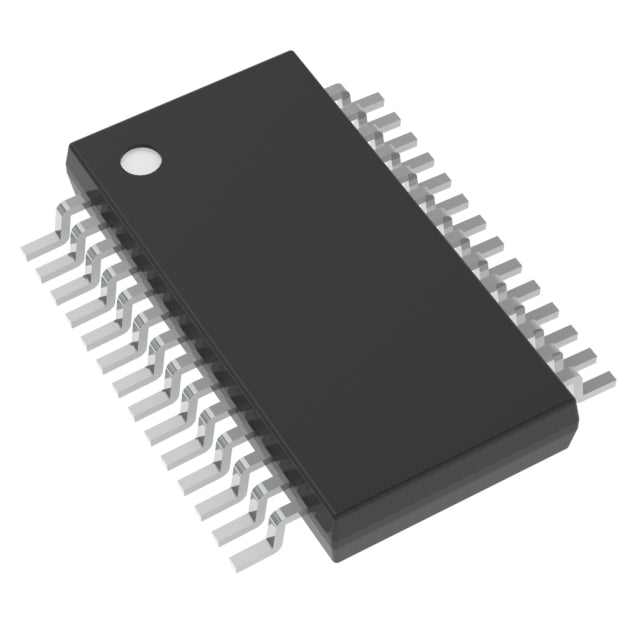

Analog Devices Inc. LTC1605IG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $43.25 | $43.25 |
| 15+ | $41.89 | $628.35 |
| 25+ | $40.98 | $1,024.50 |
| 50+ | $38.70 | $1,935.00 |
| 100+ | $34.15 | $3,415.00 |
| N+ | $6.83 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC1605IG#PBF is a 16-bit analog-to-digital converter from Analog Devices, offering a sampling rate of 100k SPS. It features a single input channel and a parallel interface for straightforward integration with microcontrollers and DSPs. The S/H-ADC architecture ensures accurate sampling, while the external or internal reference provides flexibility. This ADC is ideal for precision industrial applications, portable instruments, and process control systems where accuracy and reliability are paramount.
- High Accuracy: 16-bit resolution delivers precise measurements for critical applications.
- Low Power: Suitable for battery-powered and portable devices.
- Simple Parallel Interface: Easy to connect to a wide range of digital systems.
- Wide Temperature Range: Operates reliably from -40°C to 85°C.
Precision Sensor Digitization
The LTC1605IG#PBF's 16-bit resolution and 100k SPS sampling rate make it ideal for digitizing precision sensors like strain gauges, thermocouples, and pressure transducers.
Industrial Weighing Systems
Its high resolution ensures accurate weight measurements in industrial scales and force measurement systems, even with small signal variations.
Battery-Powered Instruments
The low power consumption of this ADC makes it suitable for portable, battery-operated measurement devices like handheld multimeters and data loggers.
Process Control
With a wide temperature range and reliable parallel interface, it is well-suited for process control loops in chemical and pharmaceutical plants.
Audio Digitization
The 16-bit resolution and 100k SPS rate are sufficient for high-quality audio capture in professional recording equipment.
- Q: What is the resolution of the LTC1605IG#PBF?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The LTC1605IG#PBF samples at 100k SPS.
- Q: How many channels does it have?
- A: It has a single input channel.
- Q: What interface does it use?
- A: It uses a parallel digital interface.
- Q: What is the architecture?
- A: It uses a S/H-ADC architecture with external or internal reference.
- Q: What package is it available in?
- A: It comes in a 28-SSOP package.
