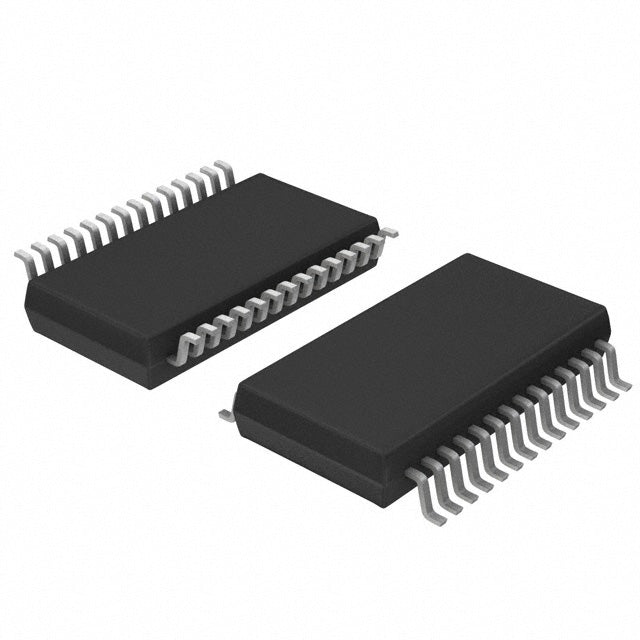

Analog Devices Inc. LTC1606ACG#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $37.41 | $37.41 |
| 15+ | $36.23 | $543.45 |
| 25+ | $35.44 | $886.00 |
| 50+ | $33.47 | $1,673.50 |
| 100+ | $29.54 | $2,954.00 |
| N+ | $5.91 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC1606ACG#TRPBF is a 16-bit, single-channel Analog-to-Digital Converter (ADC) from Analog Devices, designed for precision measurement applications. With a sampling rate of 250 kSPS, it balances speed and accuracy effectively. The device features a S/H-ADC architecture and a parallel interface for straightforward integration. It supports both external and internal voltage references, offering flexibility in system design. Operating over the commercial temperature range of 0°C to 70°C, it is packaged in a 28-SSOP. This ADC is well-suited for industrial measurement, medical instrumentation, and scientific equipment where high resolution is critical.
- High Resolution: 16-bit resolution delivers exceptional accuracy for demanding measurement applications.
- Fast Sampling: 250 kSPS sampling rate captures dynamic signals with good fidelity.
- Flexible Reference: Supports both external and internal references, allowing designers to optimize for accuracy or simplicity.
- Parallel Interface: Simple parallel output eases connection to standard digital buses.
- Proven Architecture: S/H-ADC architecture ensures reliable and consistent conversion performance.
Precision Industrial Measurement
The 16-bit resolution and 250 kSPS sampling rate make the LTC1606ACG ideal for precision industrial measurement applications, such as weigh scales and pressure sensors.
Data Acquisition Systems
In high-accuracy data acquisition systems, this ADC provides the resolution needed to capture fine signal details without missing fast transients.
Medical Instrumentation
For medical devices like patient monitors and diagnostic equipment, the LTC1606ACG offers the precision required for reliable readings.
Scientific Instrumentation
In laboratory equipment such as spectrometers and chromatographs, the high resolution ensures accurate quantification of analytical signals.
Automotive Test Systems
The ADC's speed and resolution are suitable for automotive sensor testing, including fuel injection and emission monitoring systems.
Energy Management Systems
For power monitoring and energy metering, the LTC1606ACG provides accurate digitization of voltage and current waveforms.
- Q: What is the LTC1606ACG?
- A: It is a 16-bit, single-channel Analog-to-Digital Converter (ADC) from Analog Devices with a S/H-ADC architecture.
- Q: What is the sampling rate of the LTC1606ACG?
- A: It has a sampling rate of 250 kSPS (250k samples per second), suitable for precision applications.
- Q: How many input channels does it have?
- A: It has 1 input channel, ideal for single-ended signal digitization.
- Q: What digital interface does it use?
- A: It uses a parallel interface for direct connection to microprocessors and DSPs.
- Q: Does it support external reference?
- A: Yes, it supports both external and internal voltage references for design flexibility.
- Q: What is the operating temperature range?
- A: It operates over the commercial temperature range of 0°C to 70°C.
