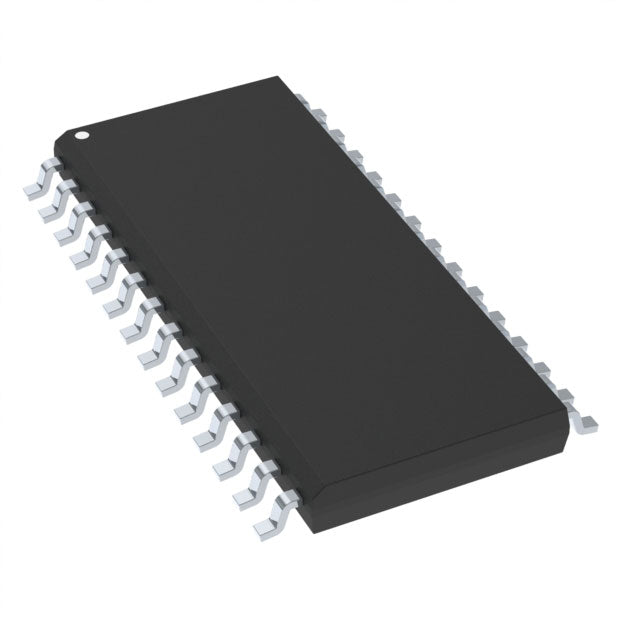

Analog Devices Inc. LTC1606AISW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $52.45 | $52.45 |
| 15+ | $50.79 | $761.85 |
| 25+ | $49.69 | $1,242.25 |
| 50+ | $46.93 | $2,346.50 |
| 100+ | $41.41 | $4,141.00 |
| N+ | $8.28 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| ROHS |  |
The LTC1606AISW#PBF is a 16-bit analog-to-digital converter from Analog Devices, designed for high-speed, high-precision data conversion. It features a sample-and-hold architecture and a parallel interface, delivering a fast sampling rate of 250k SPS. With a single input channel and flexible reference options, this ADC is ideal for industrial, automotive, and medical applications that demand accuracy and reliability across a wide temperature range.
- High-Speed 250k SPS Sampling: Enables accurate capture of fast-changing signals, making it suitable for real-time control and high-frequency measurement.
- 16-Bit Precision: Provides high-resolution conversion, ensuring detailed and accurate digital representation of analog signals.
- Industrial Temperature Range: Operates reliably from -40°C to 85°C, making it suitable for demanding automotive and industrial environments.
- Parallel Interface: Facilitates high-speed data transfer to microprocessors, simplifying system design and integration.
High-Speed Industrial Control
The 250k SPS sampling rate and 16-bit resolution make it ideal for high-speed industrial control loops, such as motor control and robotics, where fast and accurate feedback is required.
Data Acquisition Systems
In multi-channel data acquisition systems, the LTC1606AISW#PBF's speed and precision allow for accurate digitization of fast-changing signals, improving system throughput and measurement fidelity.
Automotive Sensor Interfaces
With its wide temperature range and high resolution, this ADC is well-suited for automotive sensor applications, including engine control and battery management systems, where reliability is paramount.
Medical Imaging Equipment
The high sampling rate and precision make it suitable for medical imaging systems like ultrasound, where rapid and accurate signal processing is essential for image quality.
Vibration and Acoustic Analysis
The combination of 16-bit resolution and 250k SPS sampling enables detailed analysis of vibration and acoustic signals, useful in predictive maintenance and audio testing.
- Q: What is the resolution of the LTC1606AISW#PBF?
- A: It is a 16-bit ADC, offering high precision for accurate signal conversion.
- Q: What is the sampling rate of this ADC?
- A: The LTC1606AISW#PBF supports a maximum sampling rate of 250k SPS, enabling faster data acquisition than lower-speed ADCs.
- Q: How many channels does it have?
- A: This device has a single (1) input channel.
- Q: What interface does it use?
- A: It features a parallel interface for straightforward connection to digital systems.
- Q: What is the operating temperature range?
- A: It operates over an industrial temperature range of -40°C to 85°C, suitable for harsh environments.
- Q: What package is it available in?
- A: It comes in a 28-SOIC (0.295", 7.50mm Width) package.
