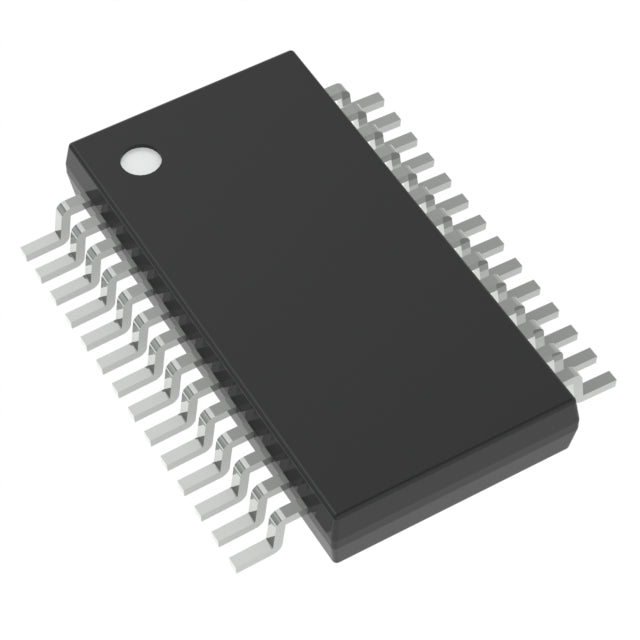

Analog Devices Inc. LTC1606CG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $40.51 | $40.51 |
| 15+ | $39.23 | $588.45 |
| 25+ | $38.38 | $959.50 |
| 50+ | $36.24 | $1,812.00 |
| 100+ | $31.98 | $3,198.00 |
| N+ | $6.40 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC1606CG#PBF is a 16-bit, 250 kSPS single-channel ADC from Analog Devices, featuring a sample-and-hold architecture for accurate signal conversion. Its parallel interface ensures easy integration with digital systems, while the external or internal reference options provide flexibility. Housed in a compact 28-SSOP package and rated for commercial temperatures (0°C to 70°C), this ADC is ideal for precision measurement, industrial control, and medical instrumentation.
- High 16-Bit Resolution: Delivers exceptional accuracy for demanding measurement applications, ensuring minimal quantization error.
- Fast 250 kSPS Sampling: Balances speed and precision, suitable for real-time control and data acquisition.
- Flexible Reference Options: Supports both external and internal references, allowing optimization for accuracy or simplicity.
- Simple Parallel Interface: Eases integration with standard digital buses, reducing design complexity.
Precision Weigh Scales
The 16-bit resolution and 250 kSPS sampling rate of the LTC1606CG#PBF enable accurate weight measurements with fast settling times, making it ideal for industrial and laboratory weighing systems.
Data Acquisition Systems
In multi-channel data loggers, this ADC's high resolution ensures precise digitization of sensor signals, while the parallel interface simplifies data transfer to host processors.
Medical Instrumentation
For patient monitoring devices such as ECG and EEG, the 16-bit resolution provides the necessary detail to capture subtle biological signals with high fidelity.
Industrial Process Control
The ADC's accuracy and speed support real-time monitoring of temperature, pressure, and flow in industrial automation, enabling precise control loops.
Scientific Instruments
In laboratory equipment like spectrometers and chromatographs, the high resolution ensures accurate quantification of chemical components.
Battery-Powered Devices
With low power consumption and a compact 28-SSOP package, this ADC is suitable for portable instruments requiring high precision without sacrificing battery life.
- Q: What is the LTC1606CG#PBF?
- A: It is a 16-bit, 250 kSPS single-channel analog-to-digital converter (ADC) with a sample-and-hold (S/H) architecture.
- Q: What is the resolution of this ADC?
- A: It offers 16-bit resolution, providing high precision for low-frequency measurement applications.
- Q: What is the sampling rate?
- A: The maximum sampling rate is 250 kSPS (kilo samples per second), suitable for moderate-speed data acquisition.
- Q: How many channels does it have?
- A: It has a single input channel, making it ideal for dedicated high-accuracy measurements.
- Q: What interface does it use?
- A: It features a parallel digital interface for straightforward connection to microcontrollers and DSPs.
- Q: What is the operating temperature range?
- A: The device operates from 0°C to 70°C, suitable for commercial applications.
