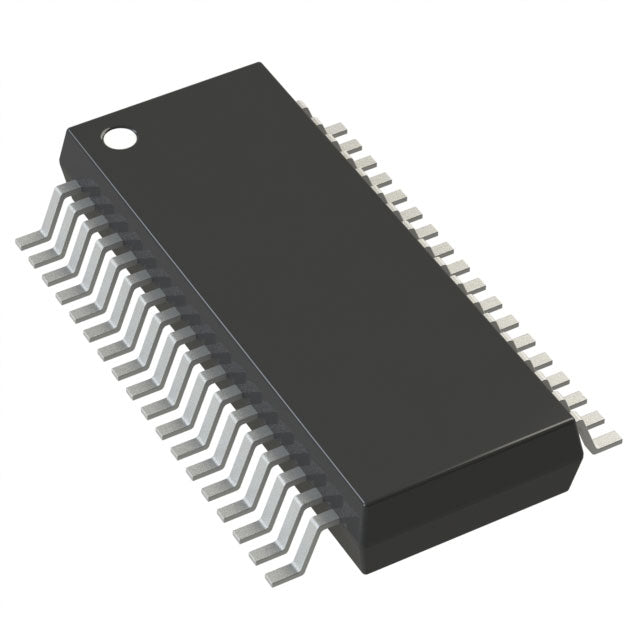

Analog Devices Inc. LTC1608ACG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $49.79 | $49.79 |
| 15+ | $48.22 | $723.30 |
| 25+ | $47.17 | $1,179.25 |
| 50+ | $44.55 | $2,227.50 |
| 100+ | $39.31 | $3,931.00 |
| N+ | $7.86 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 36-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 36-SSOP |
| ROHS |  |
The LTC1608ACG#PBF from Analog Devices is a high-speed 16-bit, single-channel analog-to-digital converter. It features a parallel interface and a sampling rate of 500k SPS, making it ideal for demanding applications. Operating from 0°C to 70°C, it is available in a 36-SSOP package, suitable for industrial, medical, and test equipment.
- High Speed & Accuracy: 500k SPS with 16-bit resolution for precise high-frequency signal capture.
- Fast Parallel Output: Enables high-throughput data transfer to digital systems.
- Proven Reliability: Designed for industrial temperature ranges (0°C to 70°C).
- Versatile Applications: Suitable for a wide range of high-performance systems.
High-Speed Data Acquisition
The 500k SPS sampling rate and 16-bit resolution make it ideal for high-speed DAQ systems in scientific and industrial applications requiring accurate waveform capture.
Industrial Automation
Its parallel interface allows for fast data transfer to PLCs and industrial controllers, enabling precise monitoring in automated manufacturing processes.
Medical Imaging Systems
The high resolution and speed are suitable for digitizing signals in medical imaging equipment, ensuring detailed and accurate image reconstruction.
Test and Measurement Equipment
This ADC is perfect for benchtop instruments like spectrum analyzers and digital multimeters, where high accuracy and speed are critical.
Telecommunications
In communication systems, the LTC1608ACG can digitize IF signals with high fidelity, supporting advanced signal processing in base stations.
- Q: What is the resolution of the LTC1608ACG?
- A: This ADC provides 16-bit resolution.
- Q: What is the maximum sampling rate?
- A: It supports a sampling rate of 500k SPS.
- Q: How many input channels are available?
- A: It has a single input channel.
- Q: What interface does it use?
- A: It features a parallel interface for data output.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C.
- Q: What package is it available in?
- A: It comes in a 36-SSOP package.
