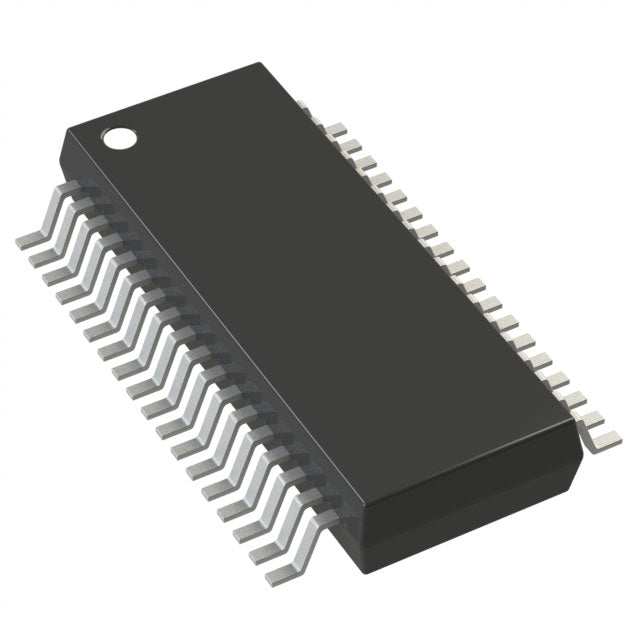

Analog Devices Inc. LTC1608AIG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $42.47 | $42.47 |
| 15+ | $41.13 | $616.95 |
| 25+ | $40.24 | $1,006.00 |
| 50+ | $38.00 | $1,900.00 |
| 100+ | $33.53 | $3,353.00 |
| N+ | $6.71 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 36-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 36-SSOP |
| ROHS |  |
The LTC1608AIG#PBF is a high-precision 16-bit, single-channel analog-to-digital converter. It offers a fast sampling rate of 500 kSPS, making it ideal for demanding measurement applications. The parallel interface provides a simple connection to digital systems. With support for external or internal references and a wide industrial temperature range, this ADC delivers exceptional accuracy and reliability for industrial, medical, and scientific instrumentation.
- 16-Bit High Resolution: Provides exceptional accuracy (1/65536) for the most demanding measurement applications.
- Fast Sampling Rate: 500 kSPS allows for the capture of dynamic signals with high fidelity.
- Industrial Temperature Range: Rated for -40°C to +85°C, ensuring reliable operation in harsh environments.
- Flexible Reference: Supports both external and internal references for design flexibility.
High-Precision Industrial Measurement
The 16-bit resolution and 500 kSPS sampling rate make the LTC1608AIG#PBF ideal for high-precision industrial measurement systems, such as weigh scales and pressure transducers.
Seismic and Vibration Analysis
Its high resolution and speed are well-suited for digitizing seismic sensors and vibration signals, enabling detailed analysis in geophysical and structural health monitoring.
Medical Instrumentation
In high-end medical devices like EEG and ECG machines, the 16-bit accuracy ensures that subtle biological signals are captured without distortion.
Scientific Data Acquisition
For laboratory equipment and scientific research, this ADC provides the precision needed for accurate data logging and analysis.
Audio Test Equipment
Its high resolution and low noise performance make it suitable for professional audio test and measurement equipment.
- Q: What is the resolution of the LTC1608AIG#PBF?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It has a sampling rate of 500 kSPS (kilo samples per second).
- Q: How many channels does it have?
- A: It features a single input channel.
- Q: What interface does it use?
- A: It uses a parallel interface.
- Q: What is the architecture?
- A: It uses a sample-and-hold (S/H) ADC architecture.
- Q: What is the package and temperature range?
- A: It comes in a 36-SSOP package and operates from -40°C to +85°C.
