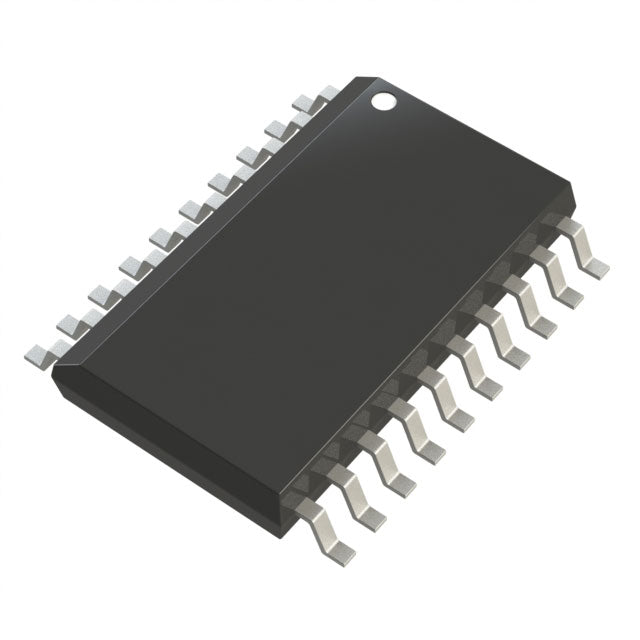

Analog Devices Inc. LTC1609ACSW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $48.04 | $48.04 |
| 15+ | $46.52 | $697.80 |
| 25+ | $45.51 | $1,137.75 |
| 50+ | $42.98 | $2,149.00 |
| 100+ | $37.93 | $3,793.00 |
| N+ | $7.59 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 200k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SO |
| ROHS |  |
The LTC1609ACSW#PBF from Analog Devices is a high-precision 16-bit analog-to-digital converter (ADC) with a sampling rate of 200k SPS. It features a single input channel and a convenient SPI serial interface, making it easy to connect to microcontrollers and digital systems. The S/H-ADC architecture ensures accurate sample-and-hold performance. This ADC operates over a temperature range of 0°C to 70°C and is available in a 20-SOIC package. It is an excellent choice for portable instrumentation, industrial sensor interfaces, and medical devices requiring high-resolution conversion.
- High Resolution: 16-bit resolution provides excellent accuracy for precision measurement applications.
- Simple SPI Interface: The SPI interface reduces pin count and simplifies PCB layout and firmware development.
- Compact Size: The 20-SOIC package is space-efficient, ideal for compact designs.
- Reliable Performance: Designed for stable operation in the 0°C to 70°C temperature range, suitable for most commercial and industrial applications.
Portable Instrumentation
The LTC1609ACSW#PBF's SPI interface and 16-bit resolution make it ideal for portable instruments that require high accuracy and low pin count for communication.
Industrial Sensor Interfaces
In industrial settings, this ADC can digitize signals from precision sensors like strain gauges and thermocouples, providing accurate data for process control.
Medical Devices
For medical devices such as patient monitors and diagnostic equipment, the high resolution and SPI interface enable precise and reliable data acquisition.
Data Acquisition Systems
The 200k SPS sampling rate and 16-bit resolution make it suitable for general-purpose data acquisition systems in laboratories and test facilities.
Environmental Monitoring
In environmental monitoring equipment, this ADC can accurately convert signals from sensors measuring air quality, water quality, and weather conditions.
Embedded Control Systems
The SPI interface simplifies integration with microcontrollers, making it a good choice for embedded control systems that require high-resolution analog input.
- Q: What is the resolution of the LTC1609ACSW#PBF?
- A: The LTC1609ACSW#PBF is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate of the LTC1609ACSW#PBF?
- A: It features a sampling rate of 200k SPS (200,000 samples per second).
- Q: How many input channels does the LTC1609ACSW#PBF have?
- A: It has a single input channel.
- Q: What interface does the LTC1609ACSW#PBF use?
- A: It uses an SPI serial interface for communication.
- Q: What is the architecture of the LTC1609ACSW#PBF?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type for the LTC1609ACSW#PBF?
- A: It is available in a 20-SOIC (0.295", 7.50mm Width) package.
