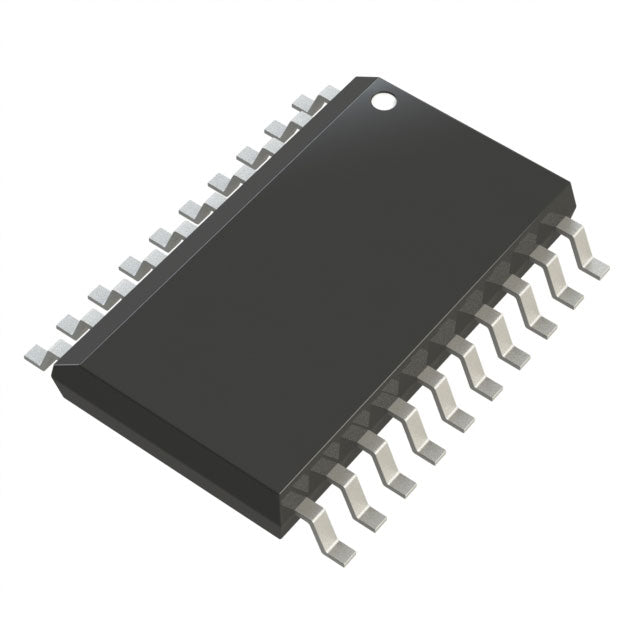

Analog Devices Inc. LTC1609ISW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $36.87 | $36.87 |
| 15+ | $35.71 | $535.65 |
| 25+ | $34.93 | $873.25 |
| 50+ | $32.99 | $1,649.50 |
| 100+ | $29.11 | $2,911.00 |
| N+ | $5.82 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 200k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SO |
| ROHS |  |
The LTC1609ISW#PBF is a 16-bit analog-to-digital converter from Analog Devices, offering a sampling rate of 200k SPS. This single-channel ADC features a successive approximation (S/H-ADC) architecture and a convenient SPI serial interface. It supports both external and internal voltage references, providing design flexibility. The device operates over an industrial temperature range of -40°C to 85°C and is available in a 20-pin SOIC package, making it suitable for a wide range of precision industrial and medical applications.
- 16-Bit Precision: Delivers high-resolution conversion for accurate signal representation.
- 200k SPS Throughput: Supports high-speed data acquisition for dynamic signals.
- SPI Interface: Easy integration with standard digital systems and microcontrollers.
- Wide Temperature Range: -40°C to 85°C ensures operation in demanding environments.
- Dual Reference Options: Internal or external reference provides flexibility in system design.
Precision Measurement Systems
The 16-bit resolution and 200k SPS sampling rate make this ADC suitable for precision measurement systems, including digital multimeters and laboratory instruments.
Industrial Automation
With an industrial temperature range of -40°C to 85°C, it is designed for reliable operation in factory automation and control systems.
Medical Monitoring Devices
High accuracy and serial interface support integration into patient monitoring equipment where precise data acquisition is essential.
Data Acquisition Cards
The SPI interface simplifies connection to DSPs and microcontrollers, making it ideal for PC-based data acquisition cards.
Sensor Interfaces
It can digitize signals from various sensors, with flexible reference options (external or internal) to match different sensor output ranges.
Telecommunications
Used in base station control and monitoring systems where reliable, high-speed conversion is required.
- Q: What is the LTC1609ISW#PBF?
- A: It is a 16-bit, 200k SPS analog-to-digital converter (ADC) with a sample-and-hold architecture and SPI interface.
- Q: What is the resolution of this ADC?
- A: The resolution is 16 bits, providing high-precision conversion.
- Q: What is the maximum sampling rate?
- A: The maximum sampling rate is 200k samples per second (200k SPS).
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What interface does it support?
- A: It uses a serial SPI interface for communication.
- Q: What package is the LTC1609ISW#PBF available in?
- A: It is offered in a 20-pin SOIC package (0.295", 7.50mm Width).
