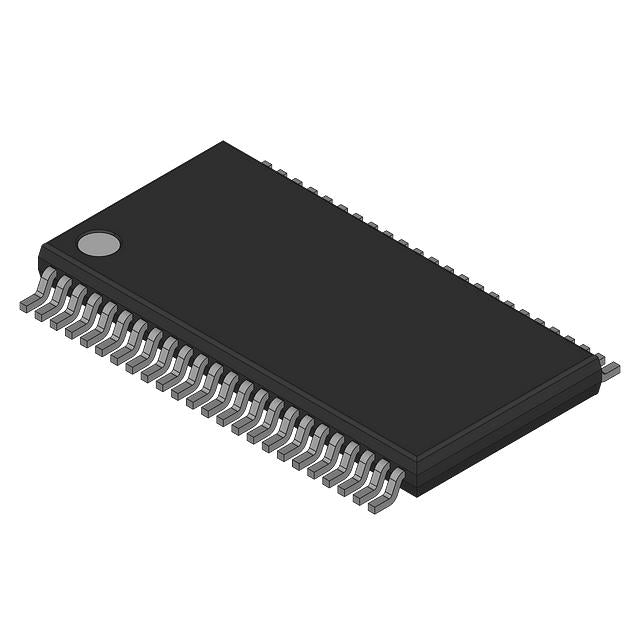

Analog Devices Inc. LTC1744IFW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $62.26 | $62.26 |
| 15+ | $60.30 | $904.50 |
| 25+ | $58.99 | $1,474.75 |
| 50+ | $55.71 | $2,785.50 |
| 100+ | $49.16 | $4,916.00 |
| N+ | $9.83 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 50M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 48-TSSOP |
| ROHS |  |
The LTC1744IFW#PBF is a 14-bit, 50 MSPS single-channel analog-to-digital converter from Linear Technology. It features a parallel interface for straightforward integration with digital systems. Its sample-and-hold architecture ensures accurate conversion of high-speed signals. With a wide operating temperature range and compact 48-TFSOP package, it is well-suited for communications, medical, and industrial applications requiring high precision.
- High Resolution: 14-bit precision provides excellent signal fidelity for demanding applications.
- Fast Sampling: 50 MSPS rate captures high-frequency signals accurately.
- Parallel Interface: Simple connection to DSPs and microcontrollers without serial protocol overhead.
- Wide Temperature Range: Reliable operation from -40°C to 85°C.
High-Precision Data Acquisition
The 14-bit resolution and 50 MSPS sampling rate make this ADC perfect for high-accuracy data acquisition systems in scientific instruments and laboratory equipment.
Communications Infrastructure
In base stations and wireless infrastructure, this ADC digitizes IF signals with high fidelity, improving signal quality in 4G/5G systems.
Medical Instrumentation
For high-resolution imaging and diagnostic equipment, the LTC1744IFW#PBF provides the precision needed for accurate patient monitoring.
Industrial Control Systems
With a wide temperature range and parallel interface, it integrates easily into industrial automation for real-time process control.
Test and Measurement
Ideal for benchtop instruments requiring high-speed, high-resolution digitization of analog signals.
- Q: What is the resolution of the LTC1744IFW#PBF?
- A: This ADC provides 14-bit resolution, offering 16384 levels for high-precision signal conversion.
- Q: What is the sampling rate?
- A: It supports a sampling rate of 50 MSPS, suitable for high-speed data acquisition.
- Q: How many channels does it have?
- A: It has a single input channel, ideal for dedicated high-speed signal paths.
- Q: What interface does it use?
- A: It features a parallel interface for direct connection to microcontrollers and DSPs.
- Q: What is the architecture?
- A: It uses a Sample-and-Hold (S/H) ADC architecture, ensuring accurate sampling of fast signals.
- Q: What is the package type?
- A: It comes in a 48-TFSOP package with a width of 6.10mm, suitable for compact designs.
