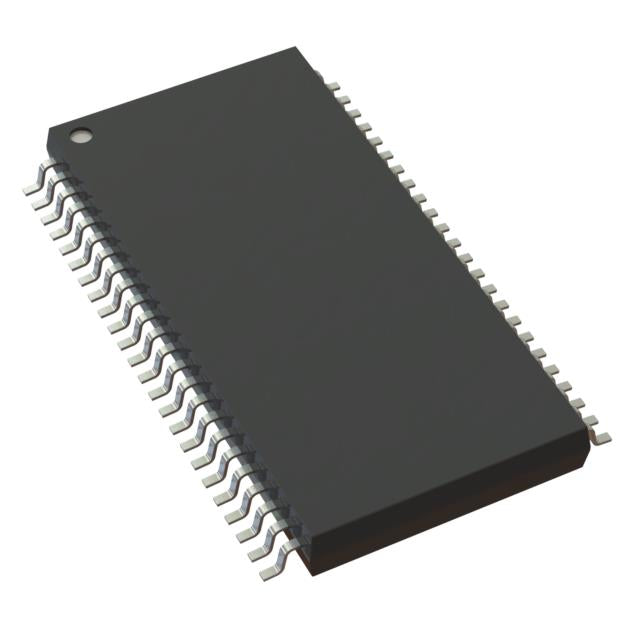

Analog Devices Inc. LTC1851CFW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.97 | $18.97 |
| 15+ | $18.37 | $275.55 |
| 25+ | $17.97 | $449.25 |
| 50+ | $16.97 | $848.50 |
| 100+ | $14.98 | $1,498.00 |
| N+ | $3.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1.25M |
| Number of Inputs | 8 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | Selectable Address |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 48-TSSOP |
| ROHS |  |
The LTC1851CFW#PBF is a 12-bit, 8-channel analog-to-digital converter from Analog Devices, engineered for high-speed data acquisition. With a maximum sampling rate of 1.25 MSPS and a parallel interface, it delivers fast, efficient conversion for multi-channel systems. The MUX-S/H-ADC architecture ensures accurate sampling, while support for both external and internal references provides design flexibility. Housed in a 48-TFSOP package, this ADC is well-suited for industrial automation, medical instrumentation, and automotive sensor applications.
- High-Speed Sampling: 1.25 MSPS throughput enables real-time digitization of fast-changing signals, critical for dynamic measurement systems.
- 8-Channel Multiplexing: Allows a single ADC to handle multiple inputs, reducing board space and cost in multi-sensor designs.
- Parallel Interface: Provides high data transfer rates and simple integration with standard digital buses.
- Flexible Reference Options: Supports both external and internal references, allowing optimization for accuracy or simplicity.
- Compact Package: The 48-TFSOP package is space-saving, ideal for dense PCB layouts.
Multi-Channel Data Acquisition Systems
The LTC1851CFW#PBF's 8-channel input and 1.25 MSPS sampling rate make it perfect for data acquisition systems that need to monitor multiple analog signals simultaneously with high throughput.
Industrial Automation and Control
In industrial settings, this ADC digitizes signals from various sensors (temperature, pressure, flow) with 12-bit precision, enabling real-time process control and monitoring.
Medical Instrumentation
For medical devices like patient monitors or diagnostic equipment, the LTC1851 provides fast and accurate conversion of biological signals, supporting reliable measurements.
Automotive Sensor Interfaces
Its wide operating temperature range (0°C to 70°C) and parallel interface make it suitable for automotive sensor signal conditioning in engine control or battery management systems.
Portable Test and Measurement Equipment
The combination of speed and multiple channels allows for compact, efficient designs in handheld multimeters, oscilloscopes, and logic analyzers.
Communication Systems
In base stations or software-defined radios, the LTC1851 can digitize I/Q signals or control voltages with sufficient speed and resolution for many communication protocols.
- Q: What is the LTC1851CFW#PBF ADC?
- A: It is a 12-bit, 8-channel analog-to-digital converter with a MUX-S/H-ADC architecture, designed for high-speed parallel data acquisition.
- Q: What is the resolution of the LTC1851CFW#PBF?
- A: It offers 12-bit resolution, providing a good balance between speed and accuracy for many applications.
- Q: What is the maximum sampling rate?
- A: The LTC1851CFW#PBF achieves a maximum sampling rate of 1.25 MSPS (1.25M samples per second).
- Q: How many input channels does it have?
- A: It features 8 multiplexed input channels, allowing multiple analog signals to be digitized sequentially.
- Q: What interface does it use?
- A: It uses a parallel interface for high-speed data transfer to microprocessors or DSPs.
- Q: What is the package type?
- A: It is available in a 48-TFSOP (0.240", 6.10mm Width) package.
